SMB protocol is one of the source addition options of the Logsign Unified SecOps Platform. If your product, device, or software you are using logs on the file, Logsign Unified SecOps Platform will read that file and provide you with relevant results.
If you want collect DNS Logs from Windows Server, firstly you should activate DNS Logging. You can activate logging with follow these steps;

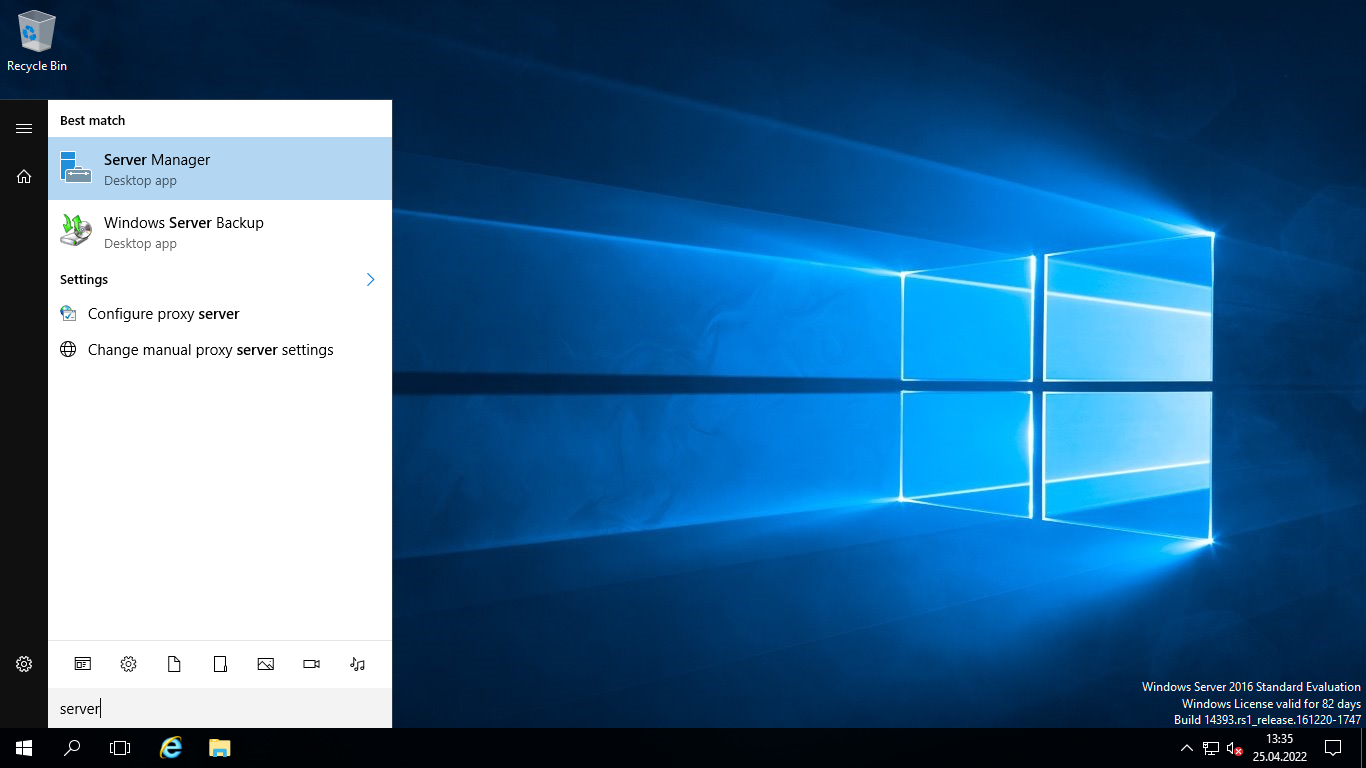

1. Open Server Manager on Windows Server.

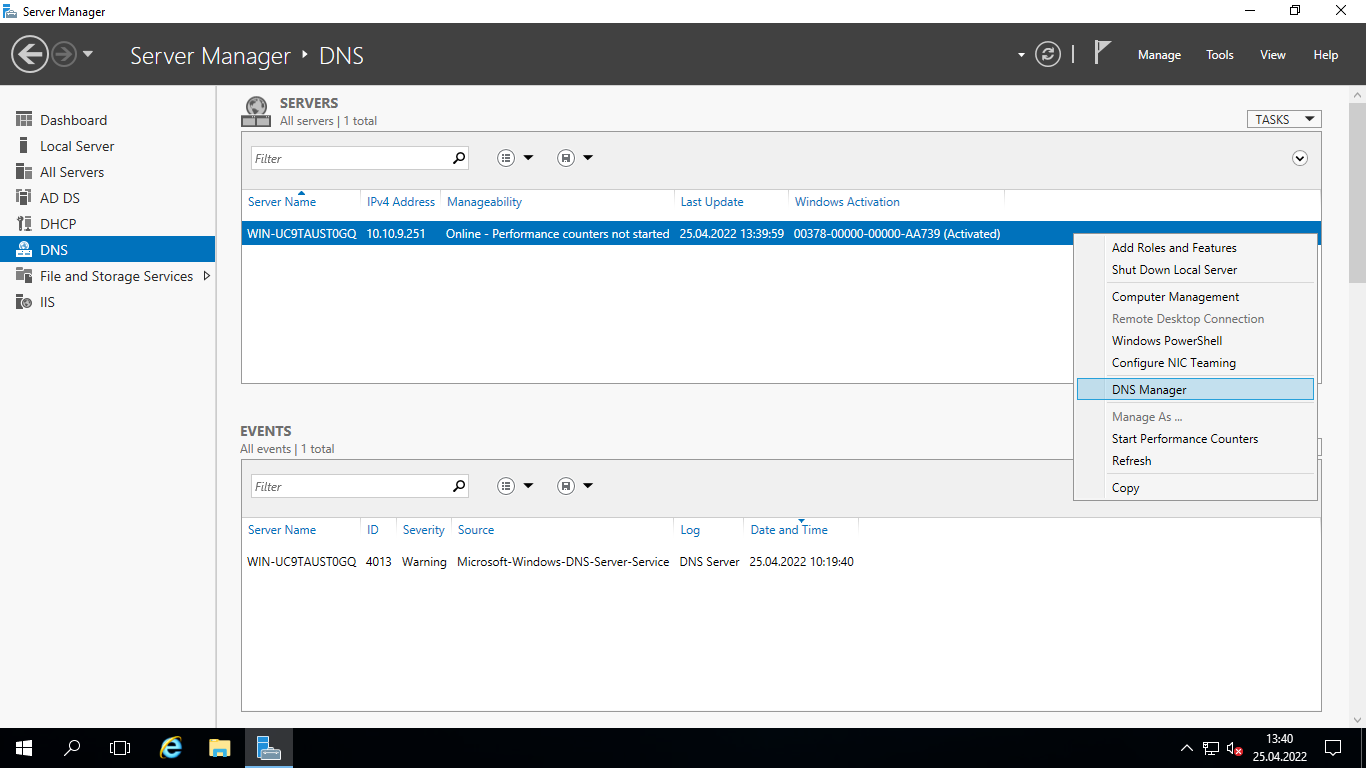

2. Click DNS from left on the screen, then right click DNS Server and enter DNS Manager.

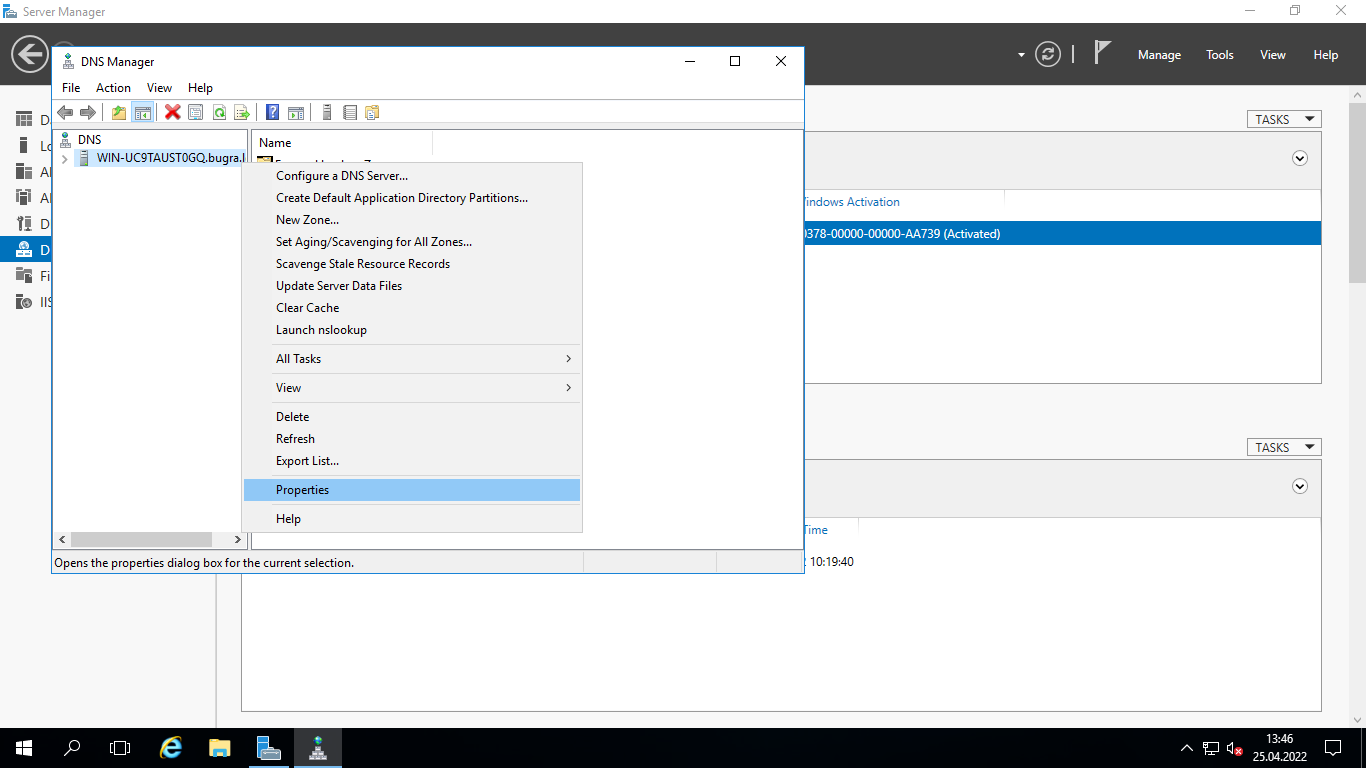

3. Right click DNS Server and enter Properties.

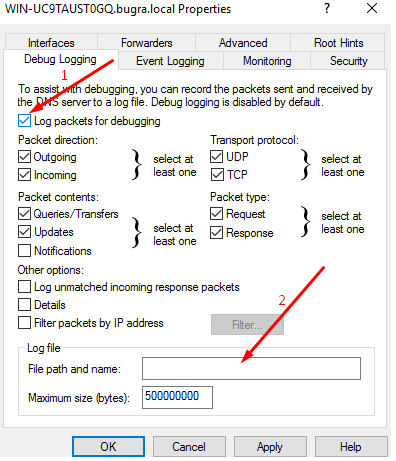

4. Click Debug Logging tab, then activate Log packets for debugging, select which logs you want collect and determine log file path and name(Default path is C:\Windows\System32\dns\dns.log). If everything is ok, click apply and save changes.
After all these steps DNS Server configuration will be completed.
Now you can add as a source your DNS Server on Logsign Unified SecOps Platform ;

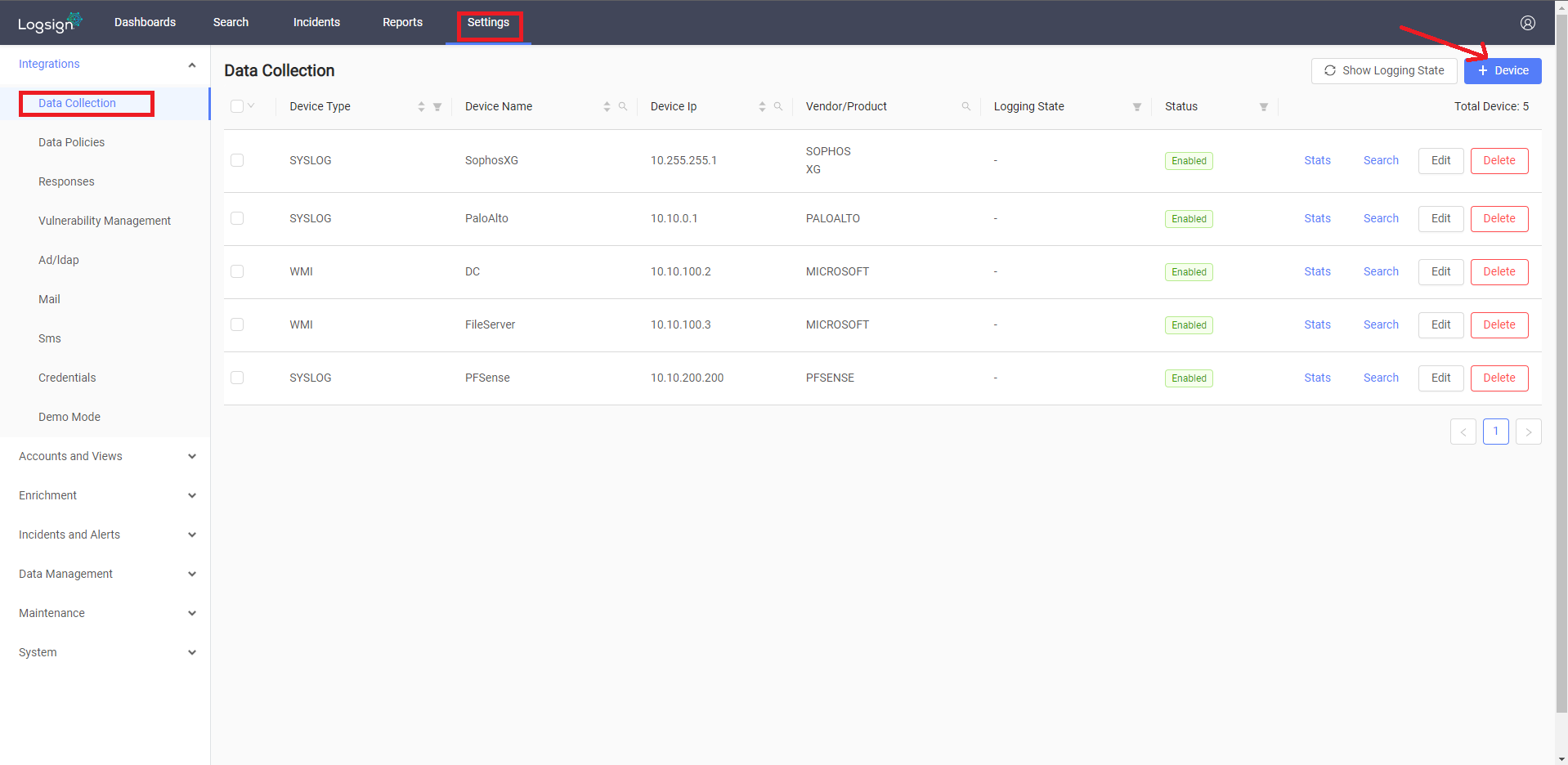

1. Go to Settings → Data Collection then click on + Device

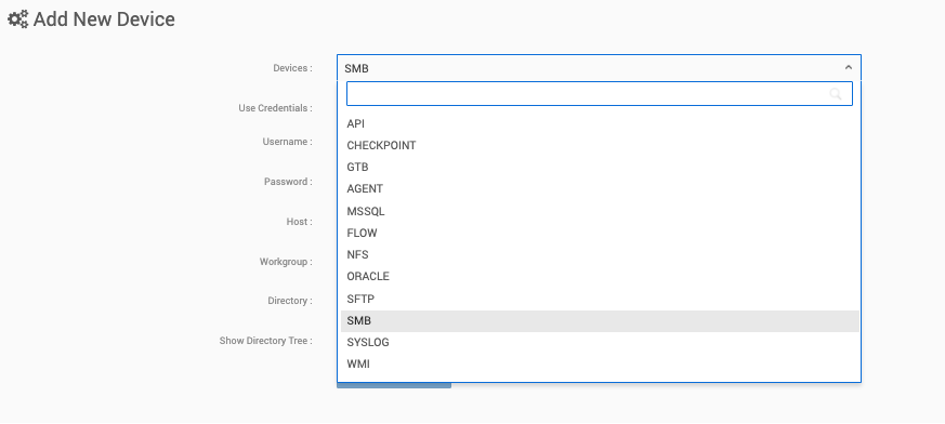

2. Select SMB
3. You can enter Administrator credentials or the second way is creating a local user. You can go to the dns file path and share it with the local user that you created. Also, you should add this user under the security tab on the same screen.

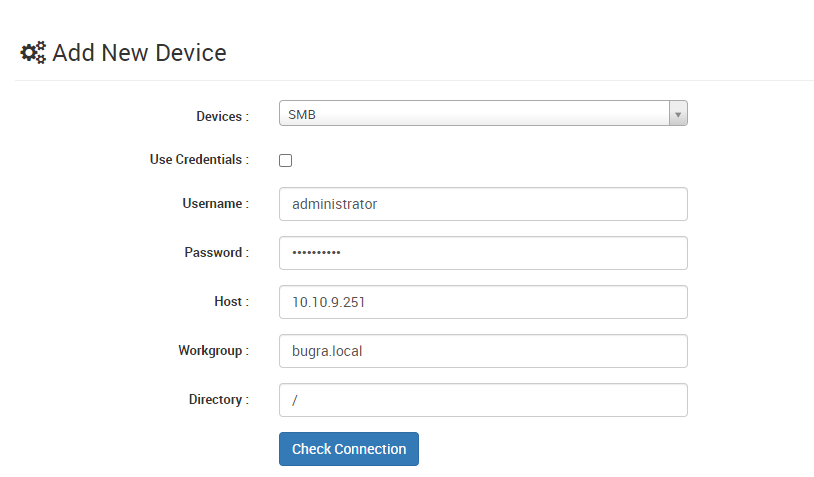

The remote host includes the following information:
- Host: The IP address for the remote DNS server.
- Username: "Administrator."
- Password: The password for the administrator account.
- Workgroup: Network Workgroup name
These fields use NTLM authentication. If NTLM is disabled in your Active Directory domain, the source cannot log in with a user name and password and the connection fails with an STATUS_NOT_SUPPORTED error. In that case, use Kerberos authentication as described below.
Using Kerberos Authentication
Tick Use Kerberos Authentication at the top of the SMB form. The user name, password and Workgroup fields are hidden, and the form shows the following fields instead:
- Hostname: The fully qualified domain name (FQDN) of the DNS server, for example
dns01.example.local. Kerberos does not work with an IP address, so the form switches to hostname mode and an IP address is refused when you save the source or run Check Connection. - Keytab File: The keytab file of the account that reads the share. The file must not be larger than 1 MiB. Logsign stores the keytab as a source secret. When you edit the source later, the stored keytab is kept unless you select a new file.
- Principal (optional): The account in
user@REALMformat, for examplelogsign@EXAMPLE.LOCAL. If you leave it empty, Logsign uses the first entry in the keytab. - KDC (optional): One or more domain controllers, as host or host:port, separated by commas or spaces, for example
dc01.example.local, dc02.example.local. Fill this field if the DNS server that Logsign uses cannot resolve the Active Directory SRV records. If it is empty, Logsign finds the KDC through DNS.
Logsign does not need to join the domain for Kerberos authentication. Before you save the source, check these requirements:
- Logsign can reach the KDC (domain controller) on TCP port 88, and the DNS server on TCP port 445.
- The clock difference between Logsign and the domain controller is less than 5 minutes.
- The account in the keytab has read permission on the shared DNS log folder.
You can create the keytab on Windows with ktpass, or on Linux with MIT Kerberos ktutil. With ktutil, add the entry with addent -password and the -f option, then write the file with wkt. The -f option takes the salt from the KDC. A keytab made without the KDC salt does not work.
Click Check Connection after you fill the fields. If the principal is not in the keytab, or the KDC cannot be reached, the error message shows the Kerberos error.

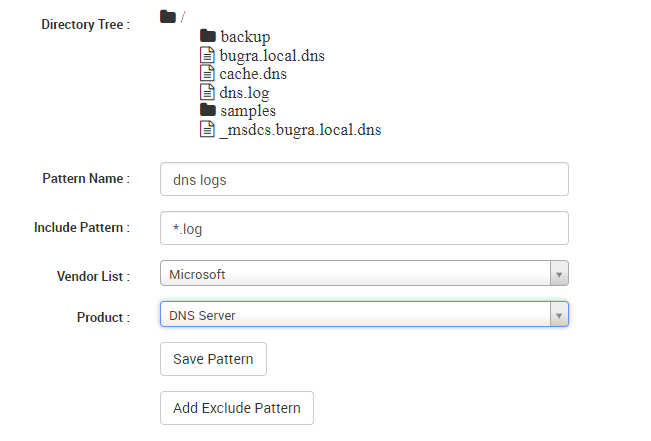

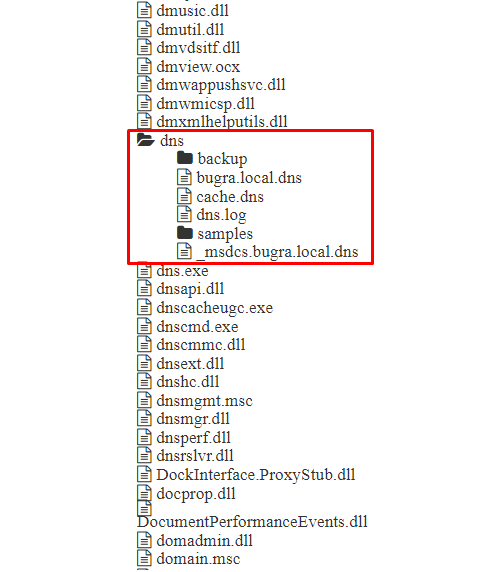

4. Under the "Directory Tree" make sure to select the C:\Windows\System32\dns\ folder that contains the log file for the DNS server.
5. Under that make sure to enter the following information for a proper log collection.
Vendor: Specify the brand information of the system you have used in this section. Choose Microsoft because you are configuring on Windows operating system.
Product: Specify product information in this section. DNS Server option is selected because you are setting DNS Server on Windows.
Then click the Save Pattern button to save the settings.
Please note that: You can add multiple pattern information.
Read Static Files: All files in the shared folder will be read when you tick the box.
Period: Determine how long the logs will be taken from the source. You need to specify in minutes, and the default value is thirty (30) minutes.
EPS: The expansion of the EPS variant used in the shared network world is known as Event Per Second. You can refer to the amount of data on your network that comes from the products such as Intrusion Detection System, Hardware or Software Firewall, Server, Switch and Router to the Logsign Unified SecOps Platform. In the Logsign Unified SecOps Platform product, the EPS value is set to default one thousand "1000" in the specified configurations, which is normal.
Please note that: If you think that the EPS value on your system is high, please contact the Logsign Customer Support Unit.
Data Policy: You can filter in or out of incoming data. In the Data Policy section, you can specify the kind of logs (word, event movement type, etc.) that you want to receive or not from the source. The default setting here is the Default Policy, which has the default rule is "collect all logs."
Offset: To explain it in terms of definition, let's say “time difference.” If the "system" time you want to log in is forward or backward from the real-time difference, you can edit it accordingly. The symbol "+" moves forward, and "-" moves backward. Time information is specified in minutes.
Check Health: Check this box to be informed about the service and operability of the Logsign Unified SecOps Platform. The Health Check Period tab will come up when you tick the box. This part is the time interval information to be checked.
Description: You must enter a descriptive name according to the configuration that you made (For ex. DNS 1). It can provide convenience for people who analyze logs. Think of the Description field as a resource-specific area.
Tag: Slightly different from the Description section, it can be used for a broader purpose. For example, you can query by tag, and make tag-based definitions while creating a report if you use multiple Exchange and define each tag as DNS1 or DNS2. If you want to query about an event, you will get a shorter result when you search according to DNS1 name.
If everything is ok, click save button and Logsign Unified SecOps Platform will collect DNS logs from your DNS Server.
