Azure Graph Security Integration

Register a new application for the Logsign

These steps are needed to authenticate with the Microsoft Graph Security API.

Follow these steps to register a new application:

Sign in to the Azure Portal with your work account. Note: this stage does not require an AAD tenant admin.

  1. Select Microsoft Entra ID ( Azure Active Directory )

  2. Select App registrations

  3. Select New registration

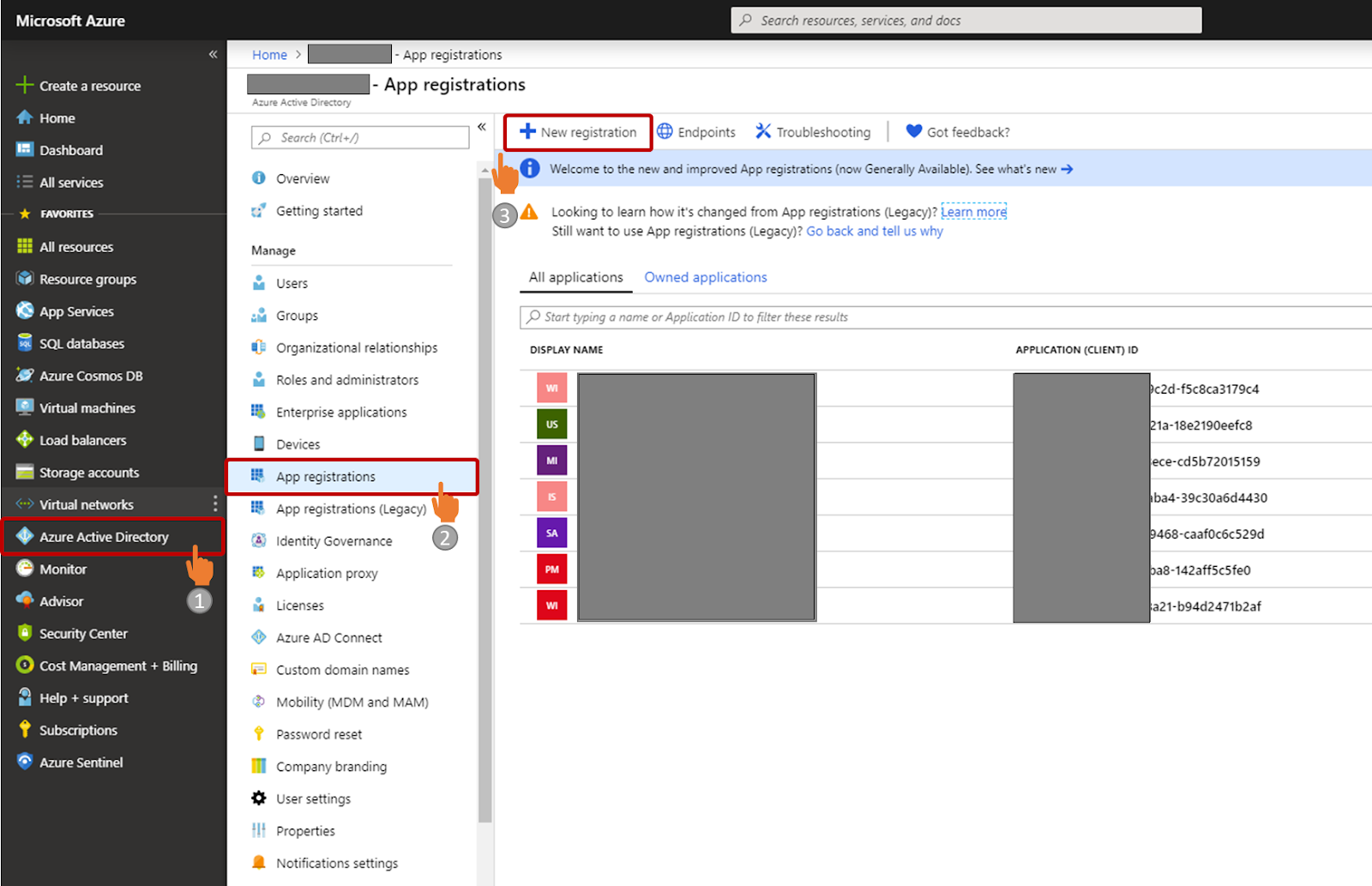

    Figure 1. AAD App Registration screen

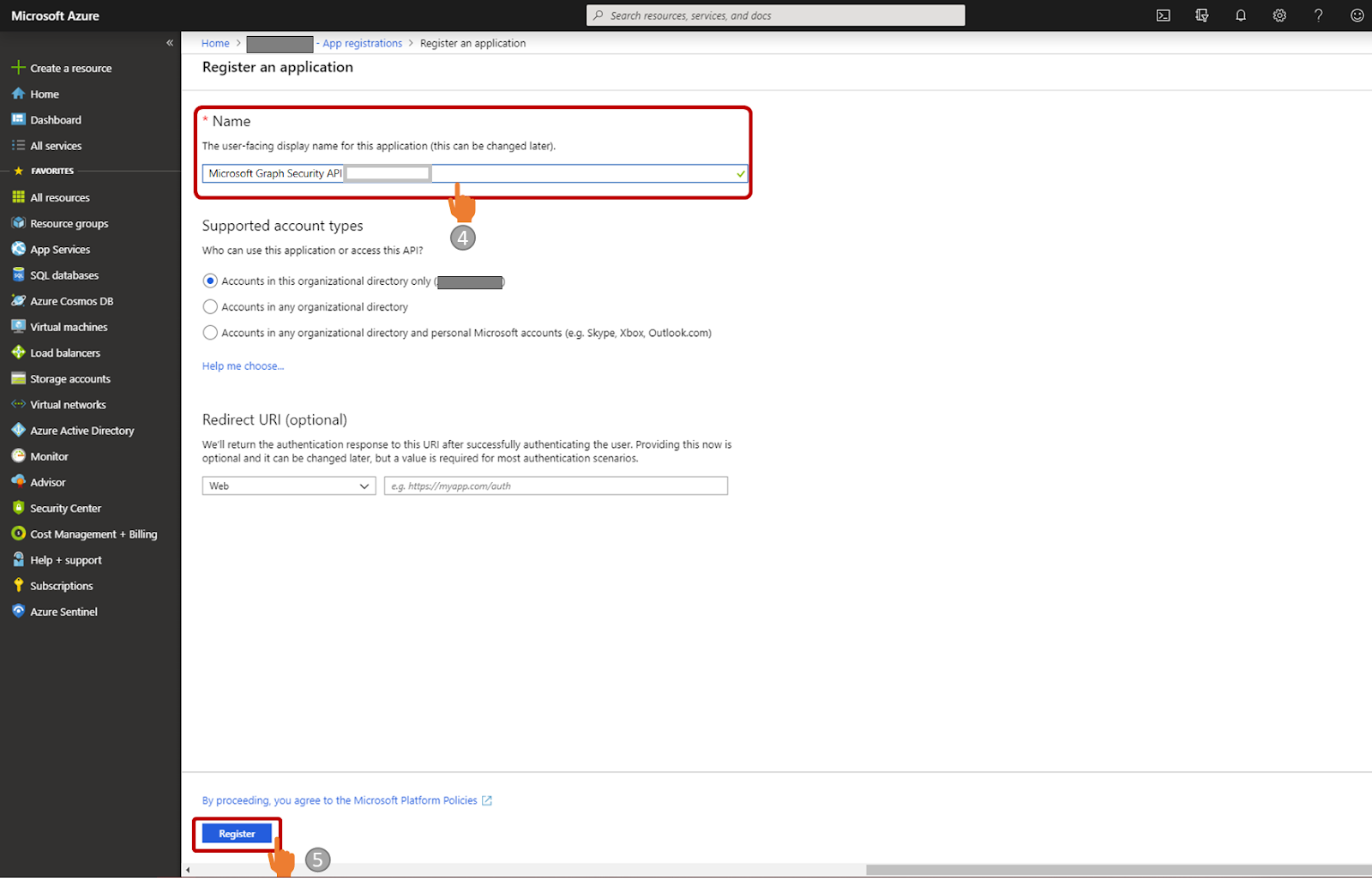

  4. In the new registration form that opens, enter an application name (4).

  5. Select Register (5).

  6. Next, you'll see the overview page (6) and your app ID (7), and Directory (tenant) ID (8). Copy and save these fields. You will need them later to complete the configuration process.

  7. Click on View API Permissions (9) to display the Graph permissions screen.

    Figure 3. Application overview page

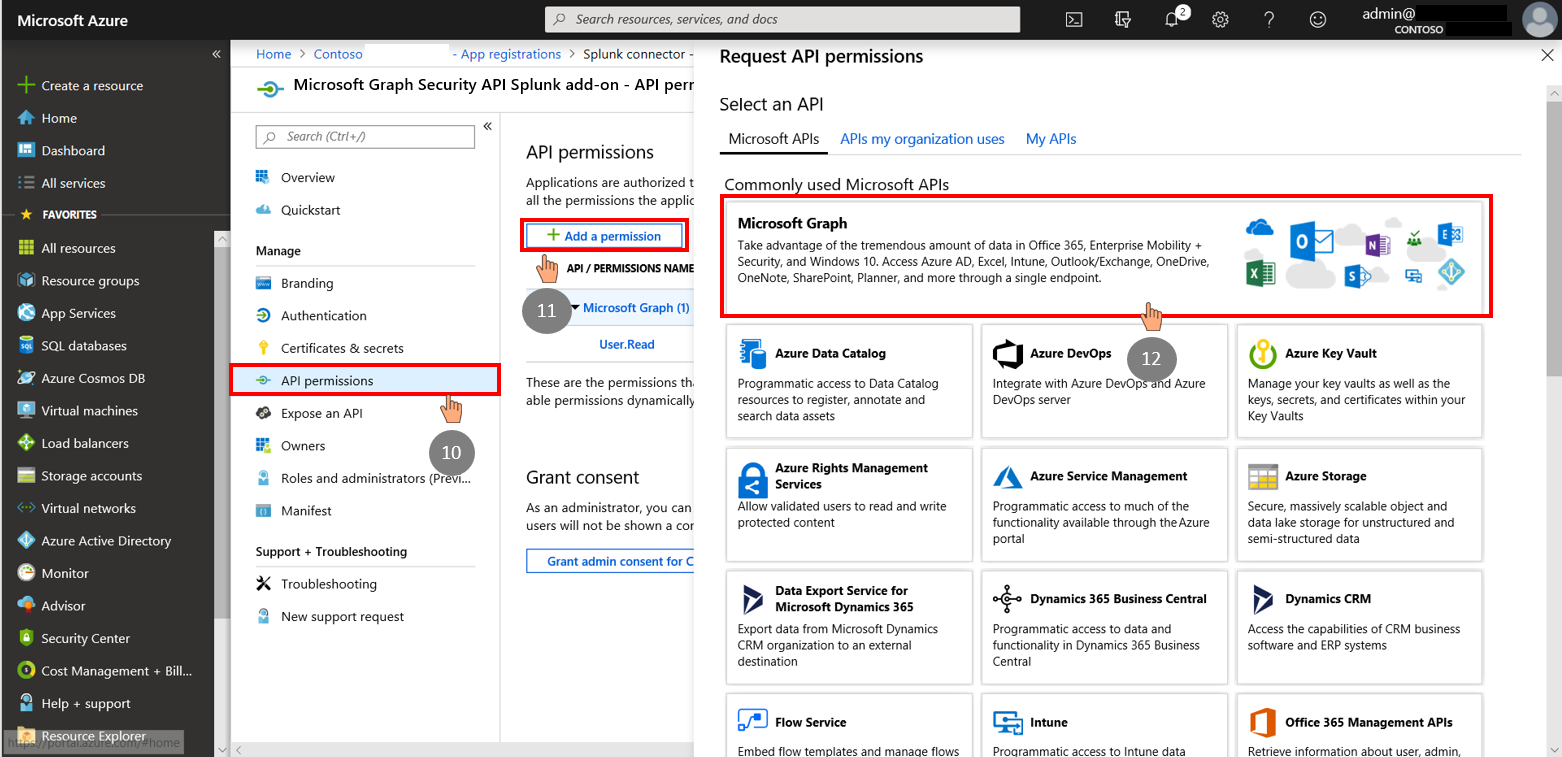

  8. In the API Permission screen(10), click on the Add a permission button (11) and select Microsoft Graph (12).

    Figure 4. Application permissions

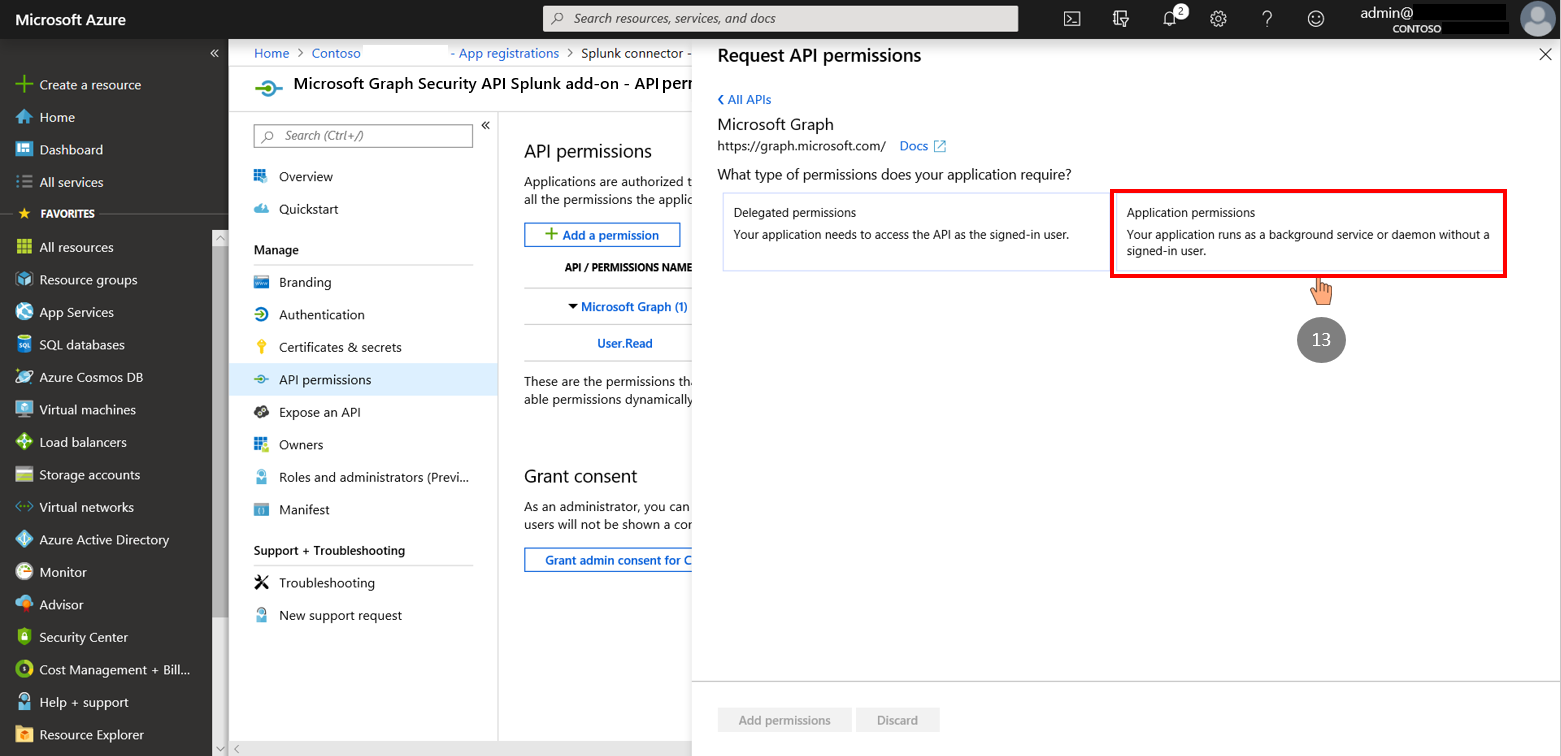

  9. Next, select Application permissions (13) in the Request API permission pane that opens.

    Figure 5. Application Auth mode (permissions)

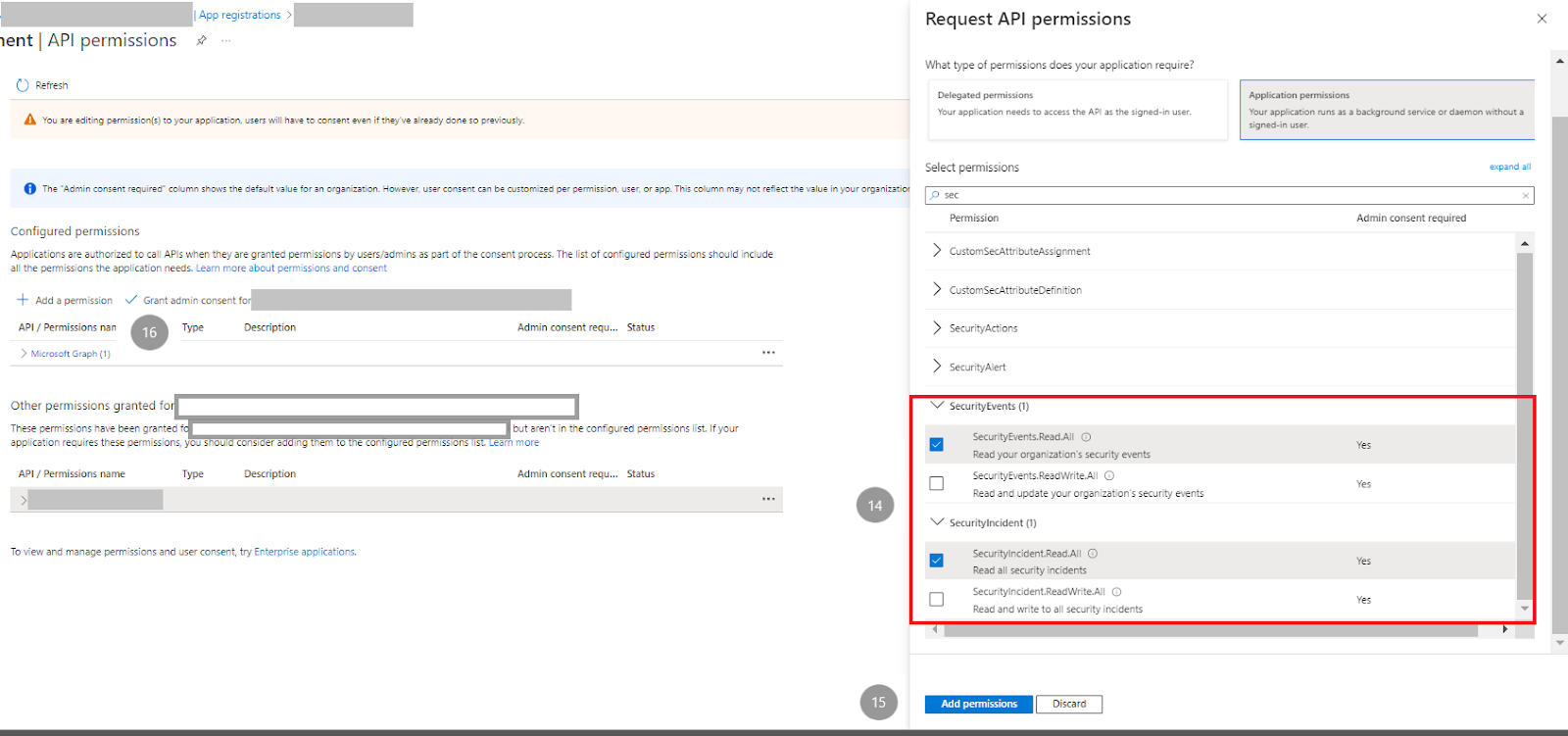

  10. Under Request API permissions, select SecurityEvents.Read.All,  SecurityIncident.Read.All(14). Then click Add permissions (15).

  11. This step needs to be completed by the Azure Active Directory tenant admin Login to the Azure Portal as the Azure Active Directory Tenant Administrator for your organization and navigate to App registration/API permissions screen. Click on Grant admin consent for 'the AAD tenant' (16).

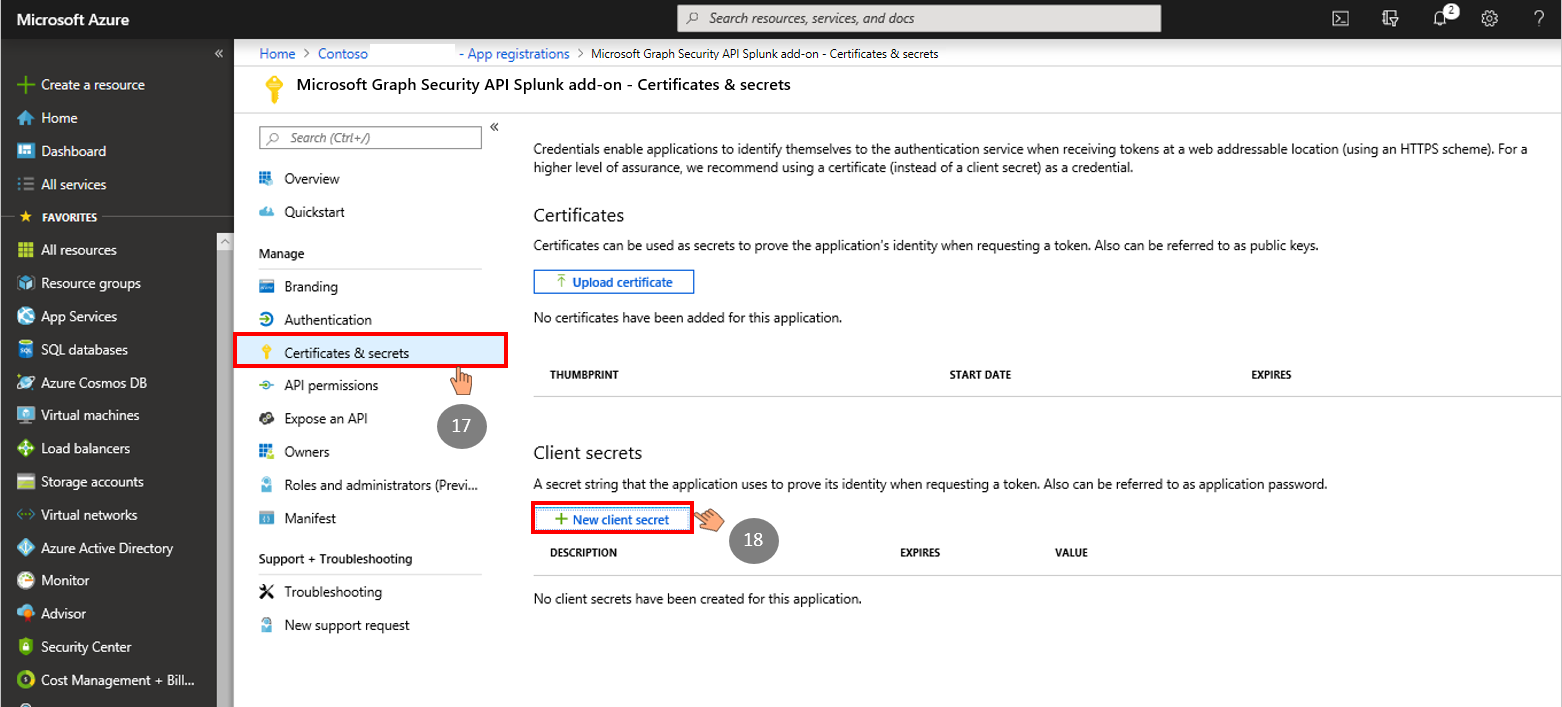

  12. Under Certificates & secrets (17), choose New client secret (18). A new secret will be displayed in the Value column. Copy this password – this is the only time you’ll be able to. You will need it later to complete the configuration process.

    Figure 7. Create App secret


Logsign Responses Configuration

1-  A user with admin authority must log in to logsign;

Settings -> Integrations -> Data Collection -> + Device

The process is complete.
