Microsoft Active Directory Adding and Authorization by WMI

Introduction

This article will provide information about the process of sending system logs of your Active Directory server to Logsign Unified SecOps Platform.

You can integrate your log server with syslog or wmi protocols, and in this document, the process will be carried out with the wmi protocol.

Recommendations for Audit Settings

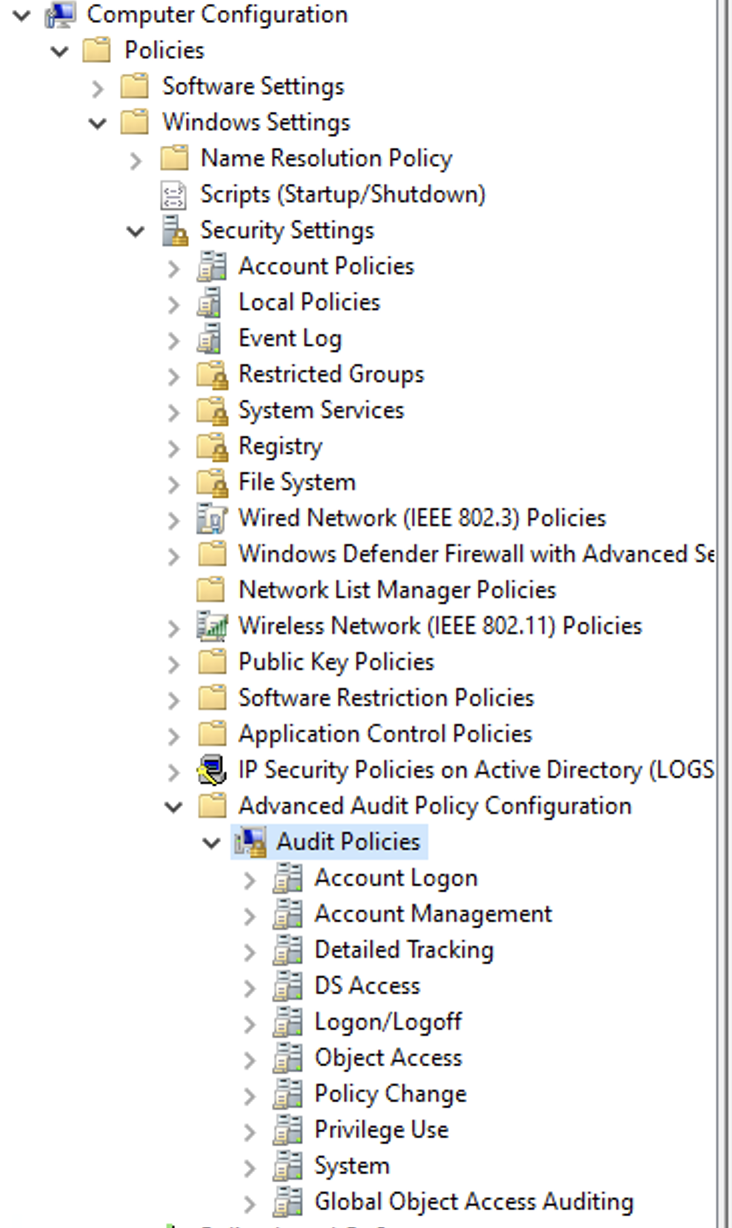

You can review Advance Audit to check the audit settings.




The recommendations are for enterprise computers that have average security requirements and high functionality. Organizations with higher security requirements should consider and apply more aggressive audit policies.



Windows Server 2016, Windows Server 2012 R2,Windows Server 2012, Windows Server 2008 R2, ve Windows Server 2008 audit setting suggestions

Audit Policy Category and Subcategories

Windows

Default

Basic Advice High Recommendations
  Success / Failure  Success /Failure  Success /Failure
Account Logon
Audit Credential Validation  No/No Yes/Yes Yes/Yes
Audit Kerberos Authentication Service      Yes/Yes
Audit Kerberos Service Ticket Operations      Yes/Yes
Audit Other Account Logon Events      Yes/Yes
Account Management
Audit Application Group Management   Yes/Yes Yes/Yes
Audit Computer Account Management    Yes/ DC  Yes/ DC
Audit Distribution Group Management   Yes/Yes Yes/Yes
Audit Other Account Management Events    Yes/Yes Yes/Yes
Audit Security Group Management    Yes/Yes Yes/Yes
Audit User Account Management  Yes/No Yes/Yes Yes/Yes
Detailed Tracking
Audit DPAPI Activity      Yes/Yes
Audit Process Creation    Yes/No Yes/Yes
Audit Process Termination    Yes/No Yes/Yes
Audit RPC Events
DS Access
Audit Detailed Directory Service Replication
Audit Directory Service Access    DC DC  DC DC
Audit Directory Service Changes    DC DC  DC DC
Audit Directory Service Replication
Logon and Logoff
Audit Account Lockout  Yes/No   Yes/No
Audit User/Device Claims
Audit IPsec Extended Mode
Audit IPsec Main Mode      If Needed
Audit IPsec Quick Mode
Audit Logoff  Yes/No Yes/No Yes/No
Audit Logon  Yes/No Yes/Yes Yes/Yes
Audit Network Policy Server  Yes/Yes
Audit Other Logon/Logoff Events      Yes/Yes
Audit Special Logon  Yes/No Yes/No Yes/Yes
Object Access
Audit Application Generated
Audit Certification Services
Audit Detailed File Share
Audit File Share
Audit File System
Audit Filtering Platform Connection
Audit Filtering Platform Packet Drop
Audit Handle Manipulation
Audit Kernel Object
Audit Other Object Access Events
Audit Registry
Audit Removable Storage
Audit SAM
Audit Central Access Policy Staging
Policy Change
Audit Audit Policy Change  Yes/No Yes/Yes Yes/Yes
Audit Authentication Policy Change  Yes/No Yes/No Yes/Yes
Audit Authorization Policy Change
Audit Filtering Platform Policy Change
Audit MPSSVC Rule-Level Policy Change      Yes/ -
Audit Other Policy Change Events
Privilege Use
Audit Non Sensitive Privilege Use
Audit Other Privilege Use Events
Audit Sensitive Privilege Use
System
Audit IPsec Driver    Yes/Yes Yes/Yes
Audit Other System Events  Yes/Yes
Audit Security State Change  Yes/No Yes/Yes Yes/Yes
Audit Security System Extension    Yes/Yes Yes/Yes
Audit System Integrity  Yes/Yes Yes/Yes Yes/Yes
Global Object Access Auditing
Audit IPsec Driver
Audit Other System Events
Audit Security State Change
Audit Security System Extension
Audit System Integrity



Windows PowerShell Auditing

Windows PowerShell keeps a detailed log of both command scripts and interactive access. If large PowerShell command scripts are frequently used, they can cause excessive event logging and noise. We recommend configuring this before deploying it organization-wide in a test environment.



Group Policy Recommended Value
Computer Configuration\Policies\Administrative Templates\Windows Components\Windows PowerShell
Turn on Module Logging  Active/ *
Turn on PowerShell Script Block Logging  Active



Windows CMD Terminal Controls

Group Policy Recommended Value
Computer Configuration\Policies\Administrative Templates\System\Audit Process Creation
Include command line in process creation events Active



Authorization Operations for Domain Controller (ADS Server)

To connect to the log source with the wmi protocol and obtain logs with a wmi query, we need to create a user.

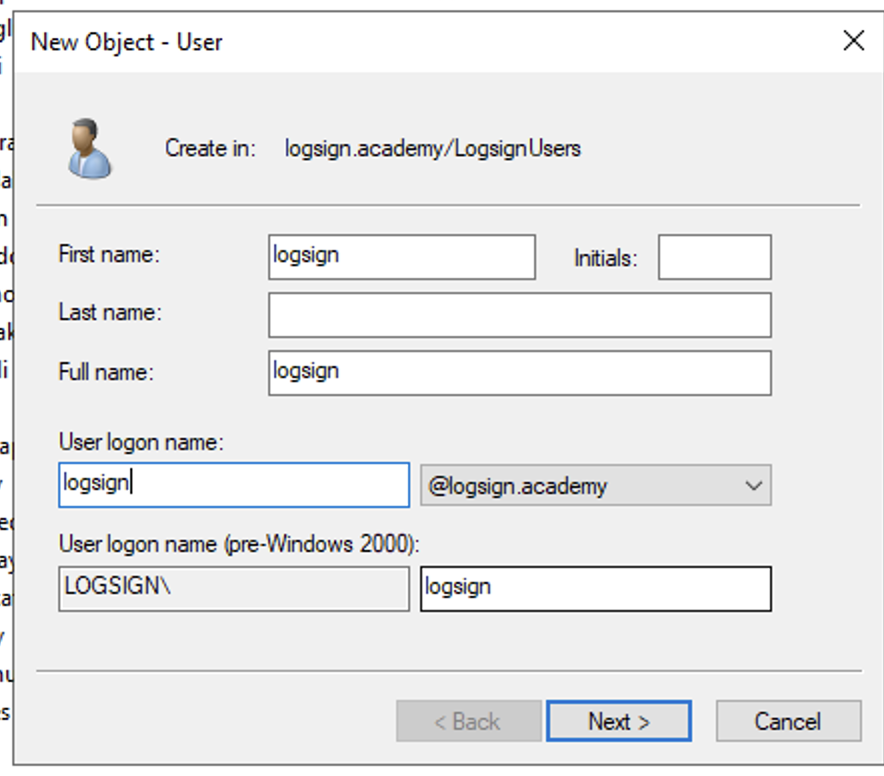

Creating a User:




To create a user, we go to Active Directory Users and Computers.

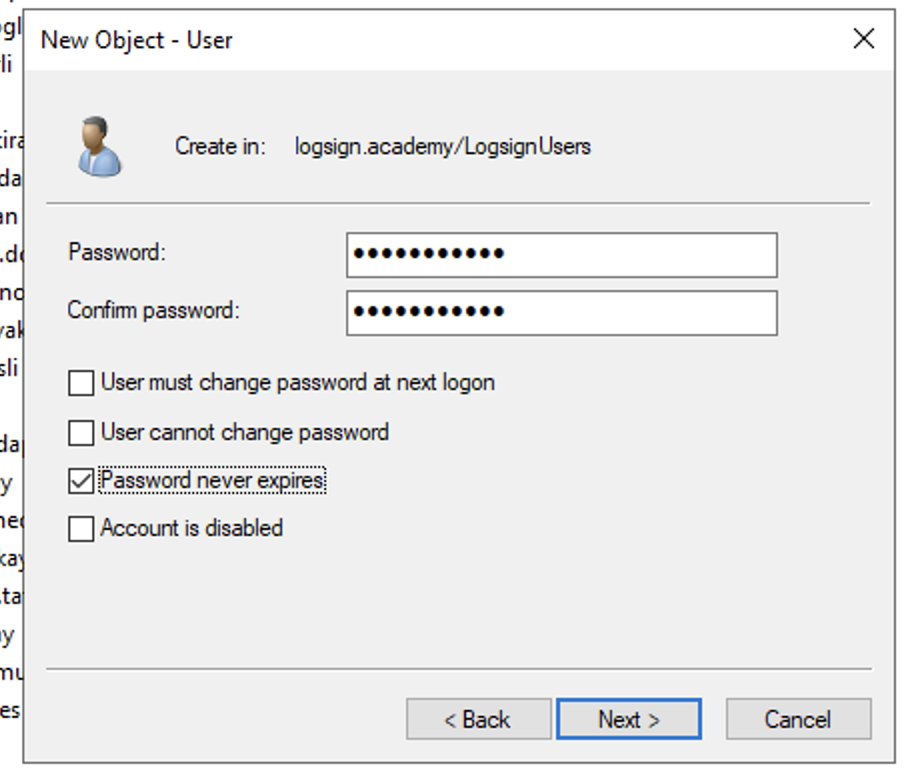

To prevent the created user's password from expiring and to avoid log interruptions, we check the Password never expires checkbox. With this option, you can apply your organization's security policies.

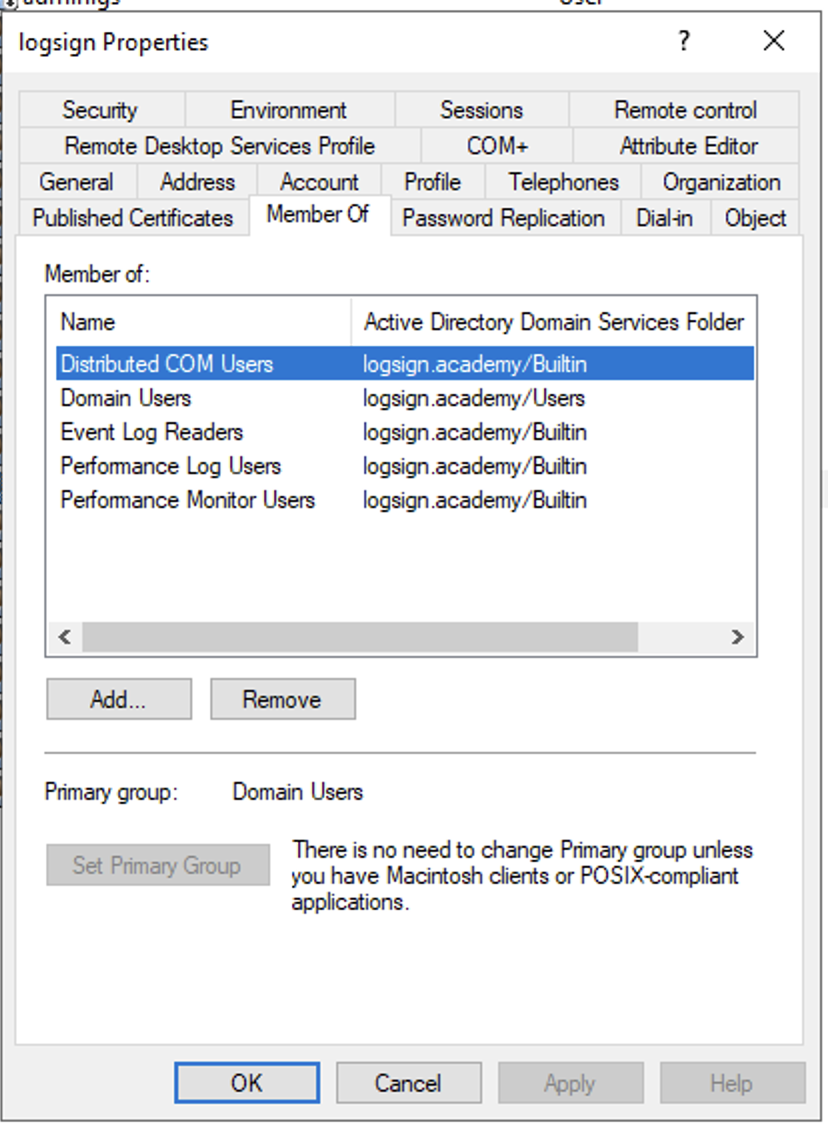

Group Memberships:

To enable the Logsign user to access the channels under eventviewer, they must be a member of certain groups, which are:

  • Distributed Com Users,
  • Performance Log Monitor,
  • Performance Log Users
  • Event Log Reader

Membership of the above groups should be provided to the Logsign user.

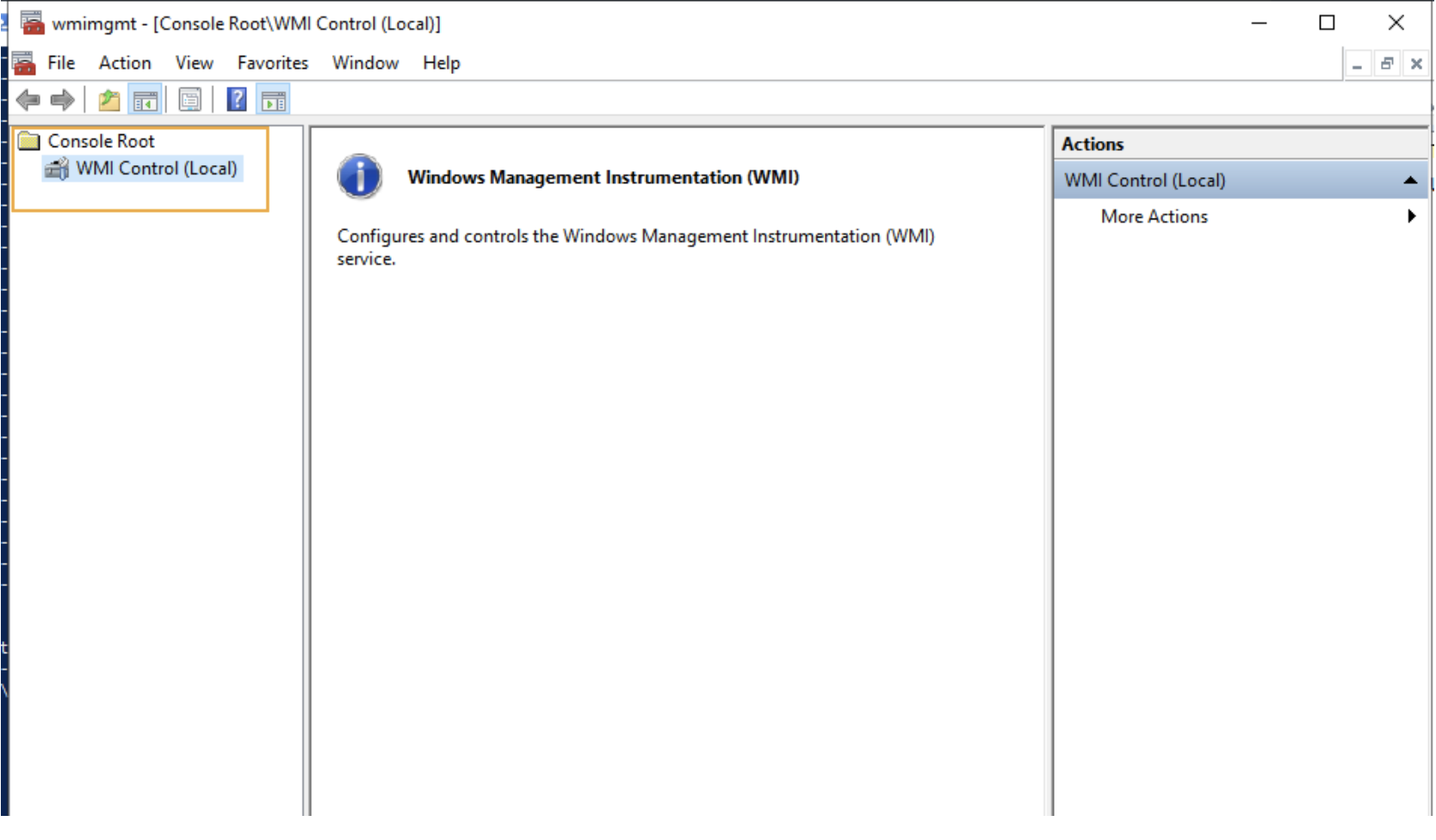

WMIMGMT Configuration:

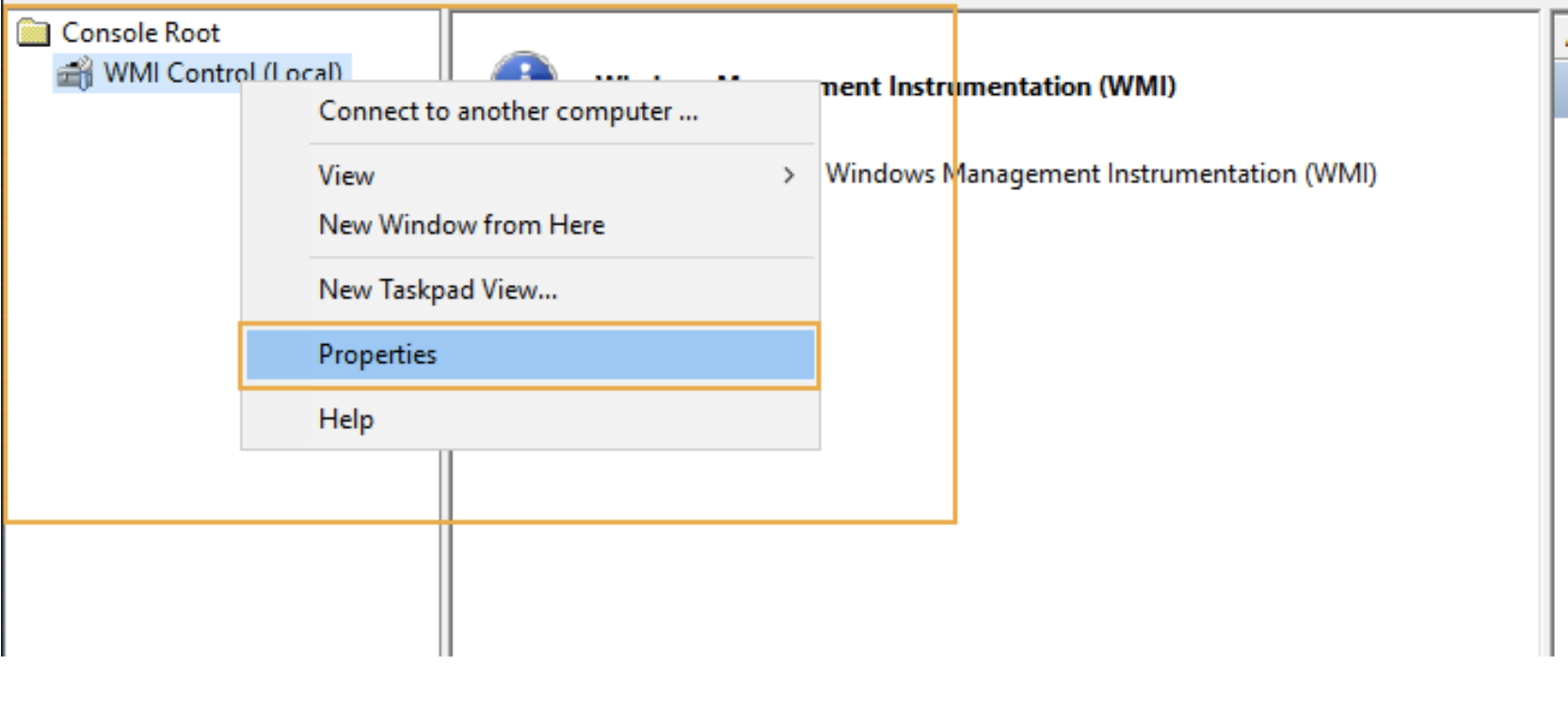

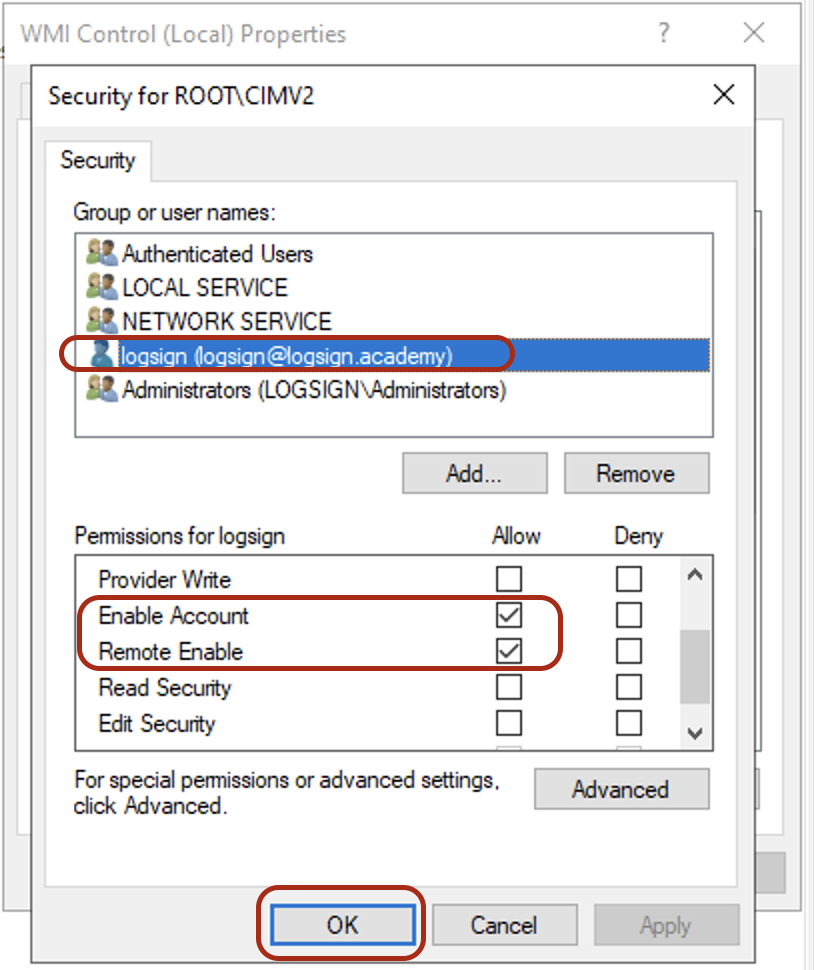

To allow the Logsign user to connect to the source with wmi, the following permissions must be defined through wmimgmt.msc.

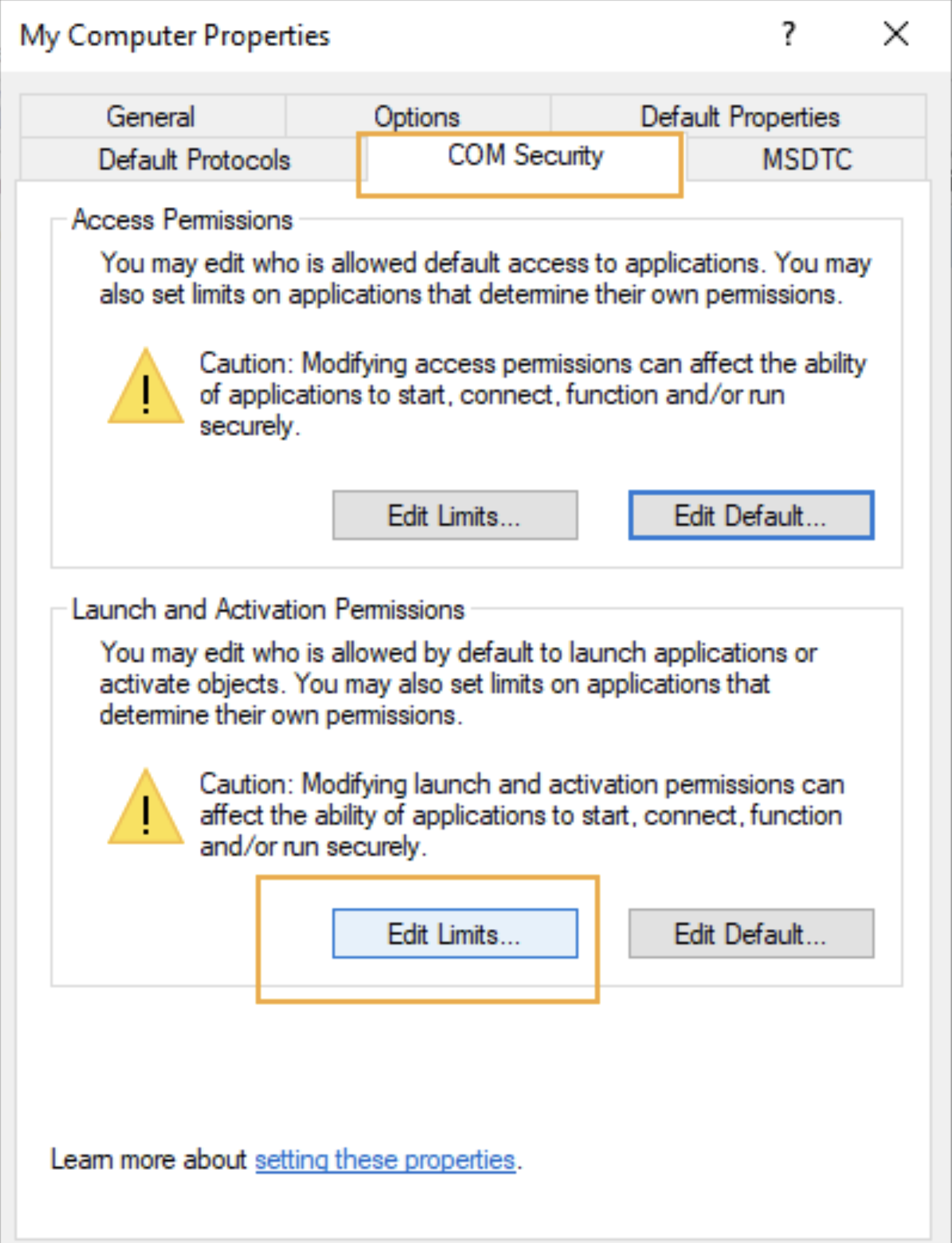

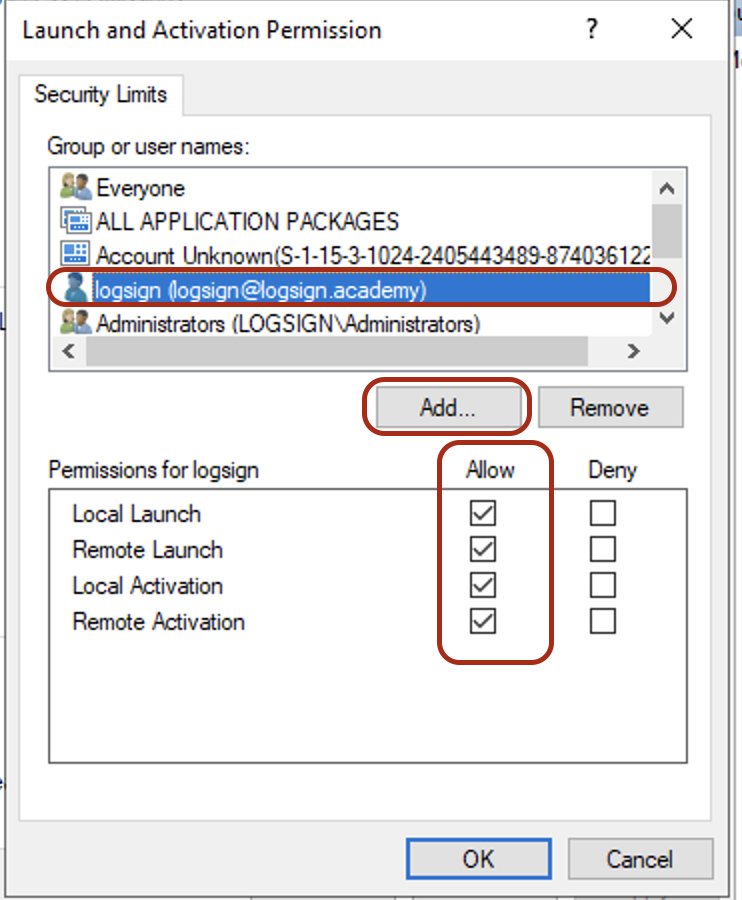

DCOMCNFG Configuration:

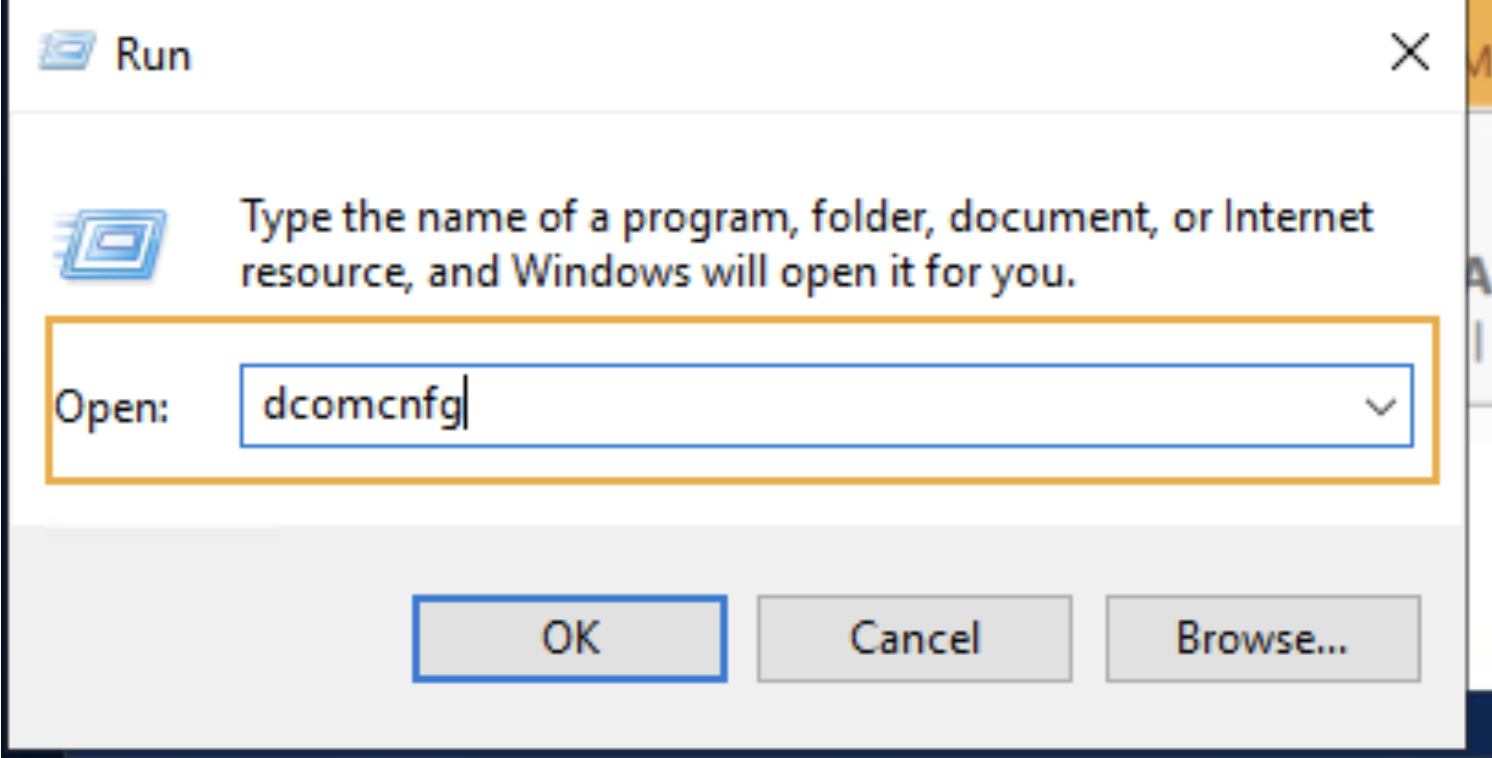

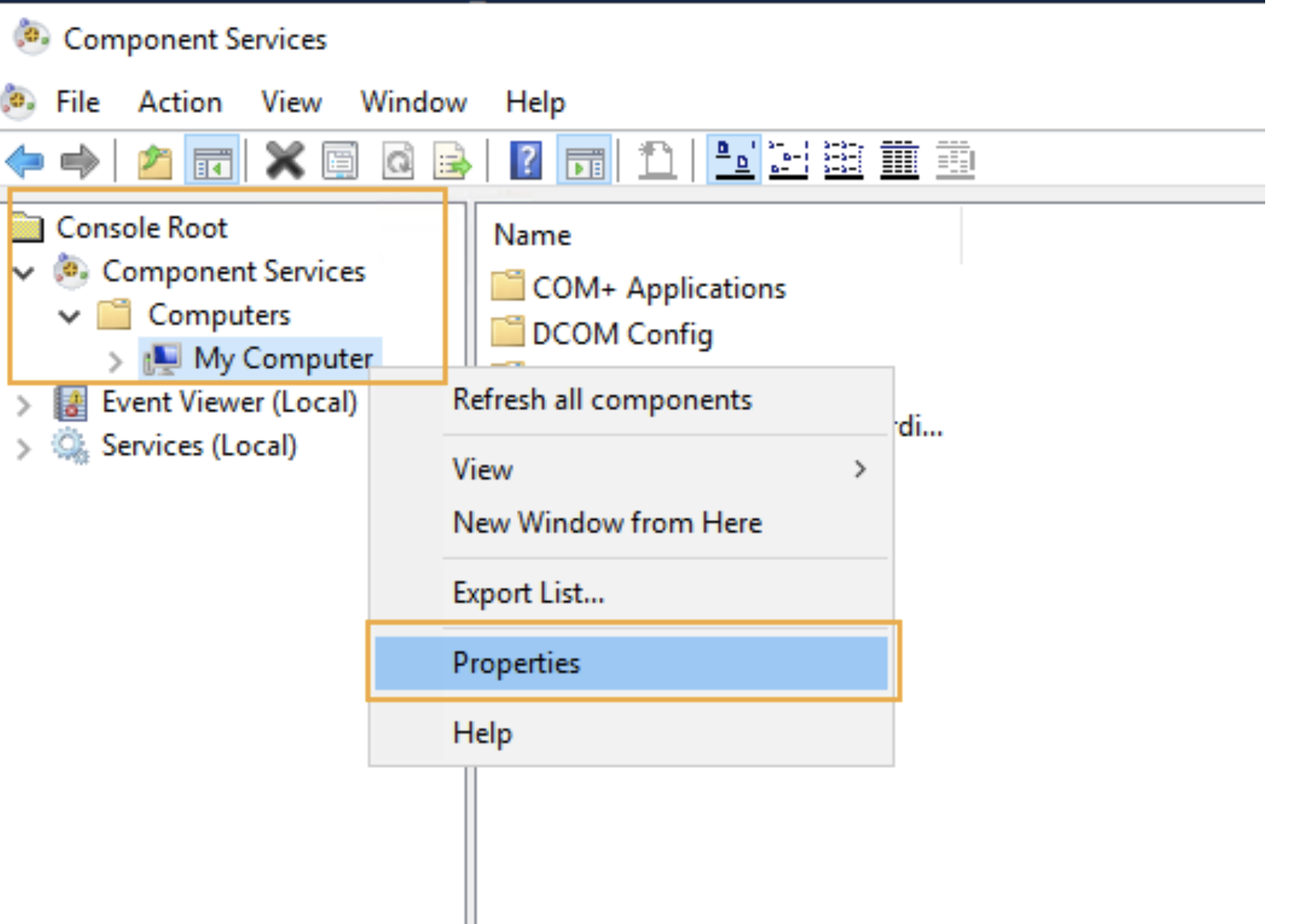

To allow the Logsign user to connect to the source with wmi, the following permissions must be defined through dcomcnfg.

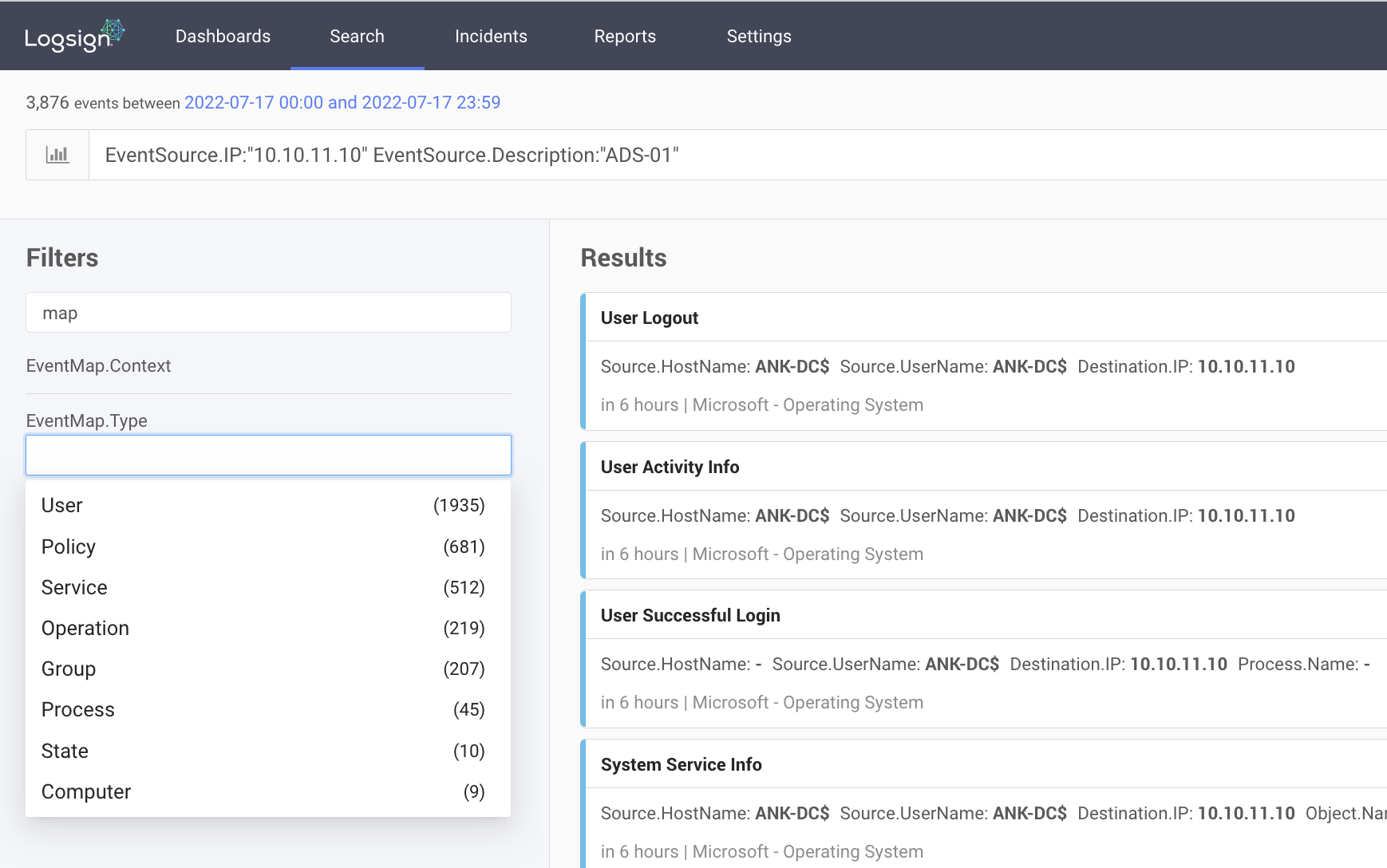

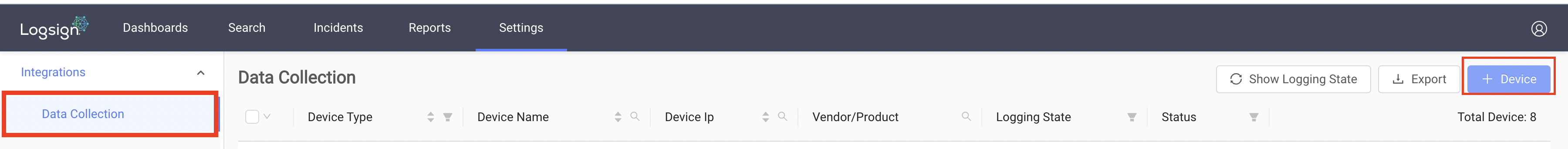

Logsign Integration:

The following steps describe the process of adding a WMI-authorized source to Logsign.




Automation Script (Performing Operations with Script)

You can use a script to perform all authorizations for Windows Domain Controller source, other servers connected to the domain, and workgroup sources.

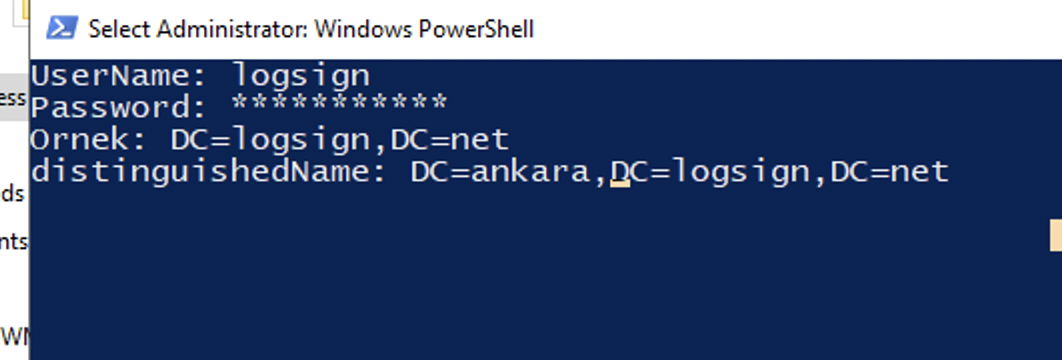

Performing Operations with Script on Domain Controller Server:

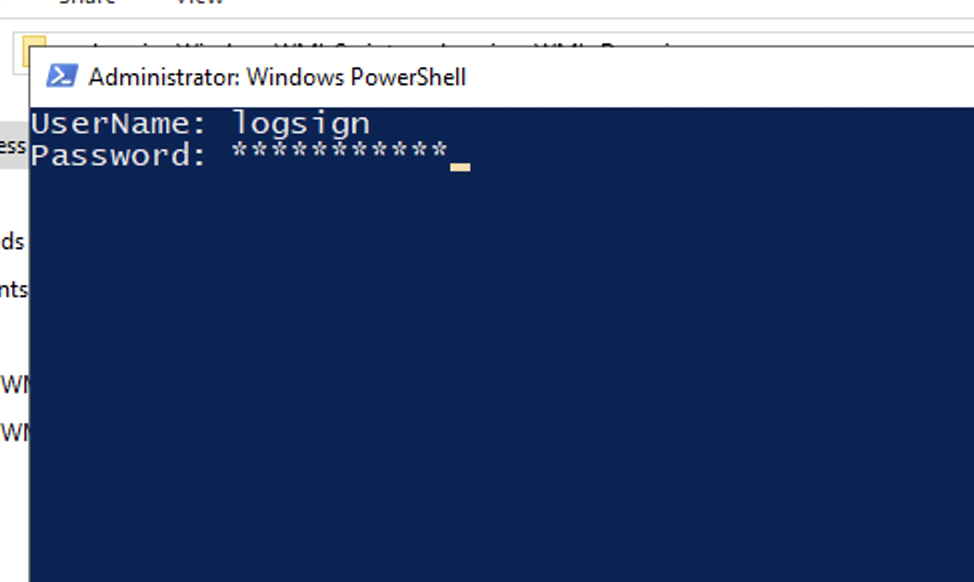

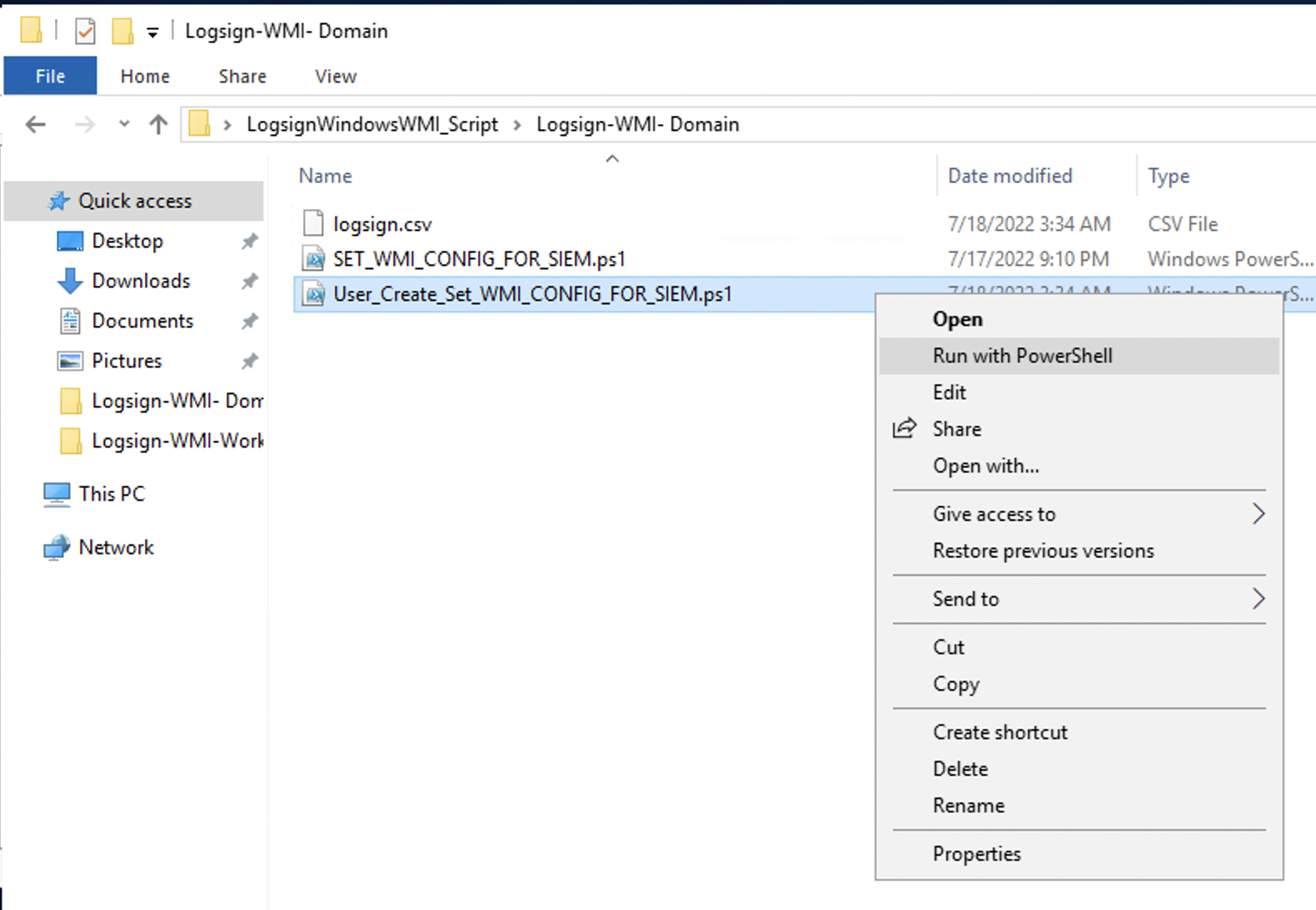

The script is executed with admin privileges. The username, password, and domain information to be created are entered, and the process is completed.

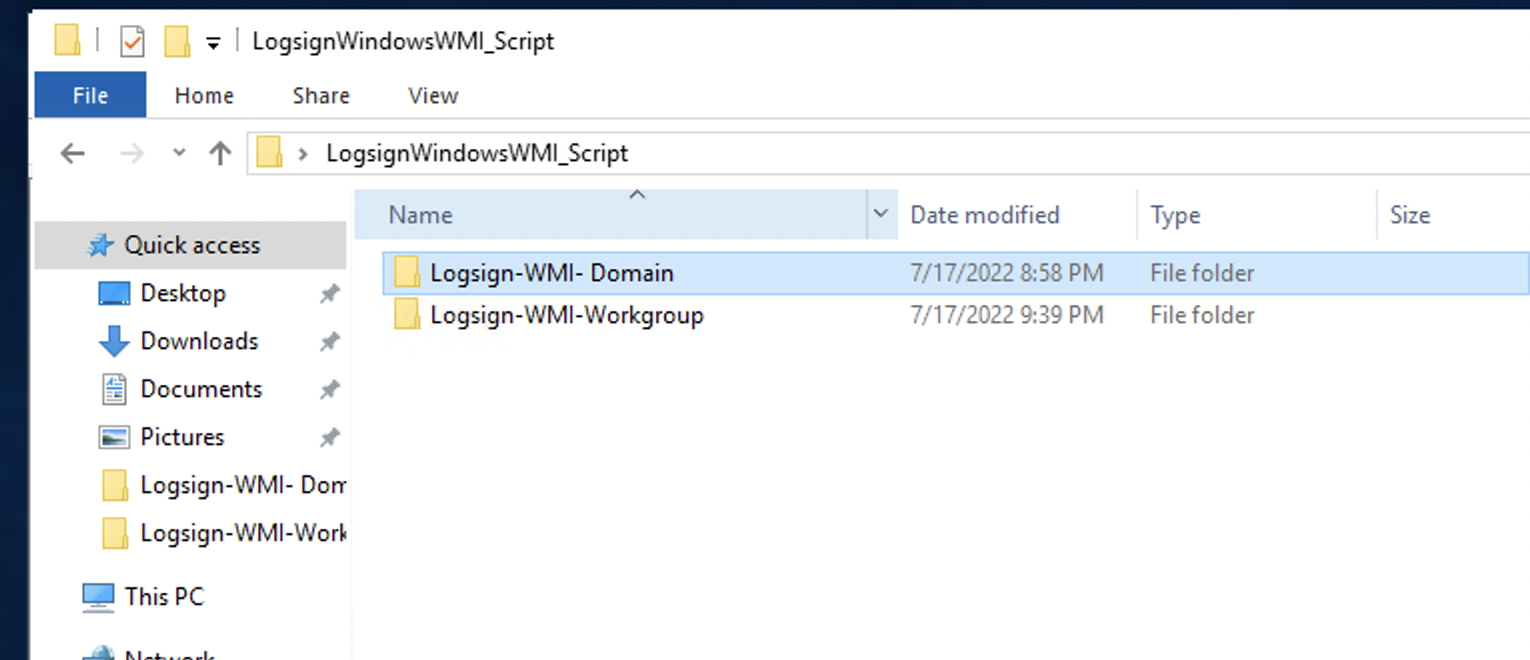

There are two scripts in the folder. The script starting with user create will create a new user, while the other script can perform operations with an existing user.

The script file is attached.
