Understanding Sign Settings Methods

Introduction

This article describes the signature methods used by Logsign to ensure the accuracy and integrity of the logs it stores.

Signature Methods

There are three different methods used for logging and signing: Line, File, and Summary signature methods.

You configure all three methods on the Settings > Data Management > Sign Settings page. The page has three fields: File Sign Method, Summary Sign Method and Line Sign Method. Click Save to apply your changes.

Logsign's default signature methods are compatible with the structure required by Turkish Law No. 5651, which mandates that logs must be timestamped and stored.

Line-based Signing (Line Sign Method)

When logs are received by the system, the entire line of the unmodified log is signed with hash algorithms.

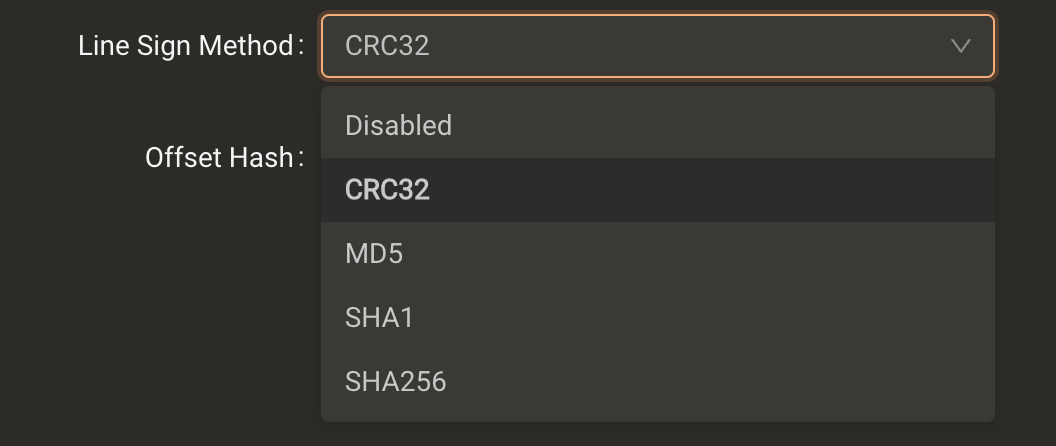

By default, it is signed with CRC32. The Line Sign Method field offers Disabled, CRC32, MD5, SHA1 and SHA256. If you select Disabled, Logsign does not add a line signature.

You can see an example of a log from a FortiGate firewall source that has been signed with CRC32 below. The section marked in red and bold shows the portion of the orange-colored log line that has been signed with the hash algorithm CRC32. This hash value uses the algorithm selected in the Line Sign Method field.

The section marked in green and bold shows the portion of the orange-colored log line that has been signed with the hash algorithm MD5. The syslog collector adds this linehash value with MD5, independent of the Line Sign Method setting.

{"id":"","hash":"90a9202d","sender_info":{"ip":"10.10.0.2","port":0,"collector":"syslog","config_uid":"zfcg46zng2pko1t6zxvjt9v3vag3uvo9","severity":"notice","facility":"local7","linehash":"ad6e3694c0f26918b57833010ff0a196"},"time":1678282524,"data":"date=2023-03-08 time=16:35:24 devname="LogsignUmitFW" devid="FGVMEVSREQQ3WM62" eventtime=1678282524293949407 tz="+0300" logid="0000000013" type="traffic" subtype="forward" level="notice" vd="root" srcip=192.241.237.24 srcname="iadmin-vmwarevirtualplatform" srcport=39956 srcintf="port2" srcintfrole="lan" dstip=10.10.0.16 dstport=1974 dstintf="port1" dstintfrole="undefined" srccountry="United States" dstcountry="Reserved" sessionid=227356 proto=6 action="timeout" policyid=5 policytype="policy" poluuid="01111dde-b7be-51ed-c558-90a548280c65" policyname="Parrot_OUT" service="tcp/1974" trandisp="snat" transip=10.10.0.2 transport=39956 duration=10 sentbyte=44 rcvdbyte=0 sentpkt=1 rcvdpkt=0 appcat="unscanned" srchwvendor="VMware" osname="Ubuntu" mastersrcmac="00:50:56:be:60:b4" srcmac="00:50:56:be:60:b4" srcserver=0"}}

File and Summary Method Signing (File & Summary Sign Method)

Logs are collected in a directory for 24 hours, compressed in either gz or bzip format, and then stored. After compression, the file and file contents are signed separately.

By default, the File Sign Method is SHA256 and the Summary Sign Method is MD5. Both fields also offer MD5, SHA1 and SHA256, and the timestamp providers listed below.

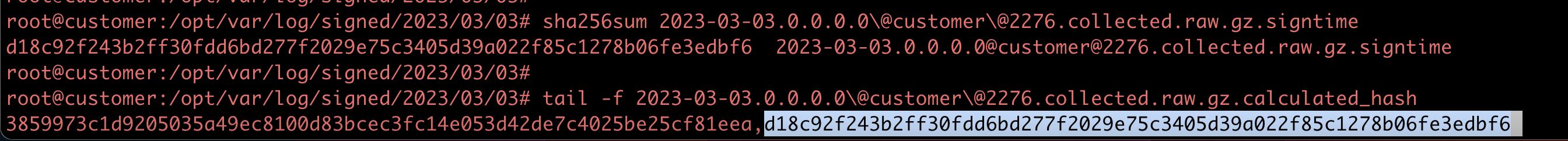

You can verify the hash of the following file using sha256 as an example.

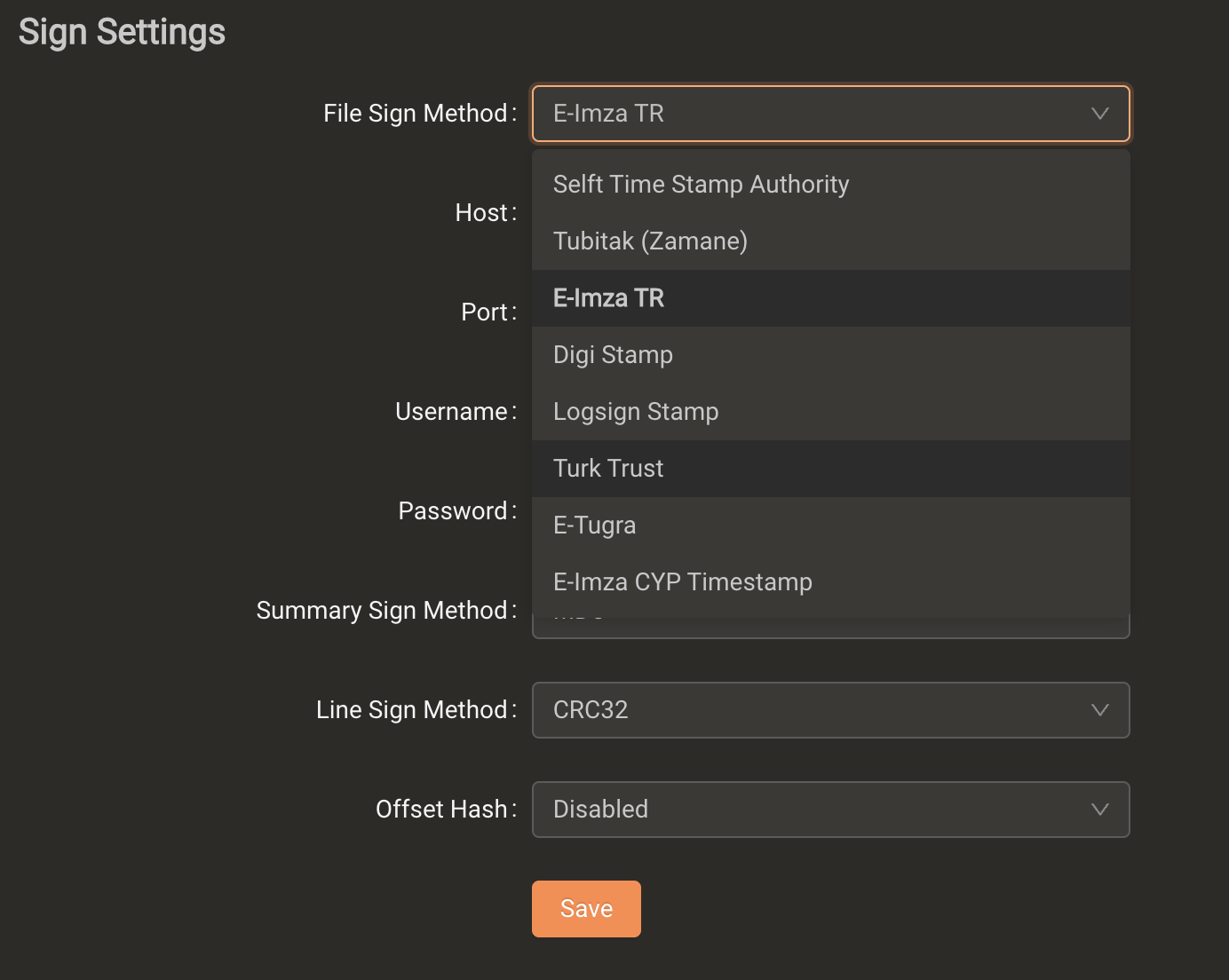

You can also use different services to sign using different hash algorithms. When you select a provider, extra fields open below the selection. Tubitak (Zamane) and E-Imza TR ask for Host, Port, Username and Password. Mikro Kep asks for Host and Port. Digi Stamp, Logsign Stamp, Turk Trust, E-Tugra and E-Imza CYP Timestamp ask for TSA Url, Username and Password.
