Vcenter - Responses Integration

Overview

VMware vCenter is advanced server management software that provides a centralized platform for controlling your VMware vSphere environments, allowing you to automate and deliver a virtual infrastructure across the hybrid cloud with confidence.

Prerequisites

• Logsign 6.3.+ versions support this integration.

Configure On Logsign

Important Note: In this section, Logsign configuration will be explained, but the user to be used in Vcenter must have power on, reset, power off privileges.

Forwarding settings are completed as follows:

1. Click Settings > Integrations > Responses.
2. In the ‘Search’ part, write Vcenter.
3. Click ‘Configure’ and then click ‘+Device’.

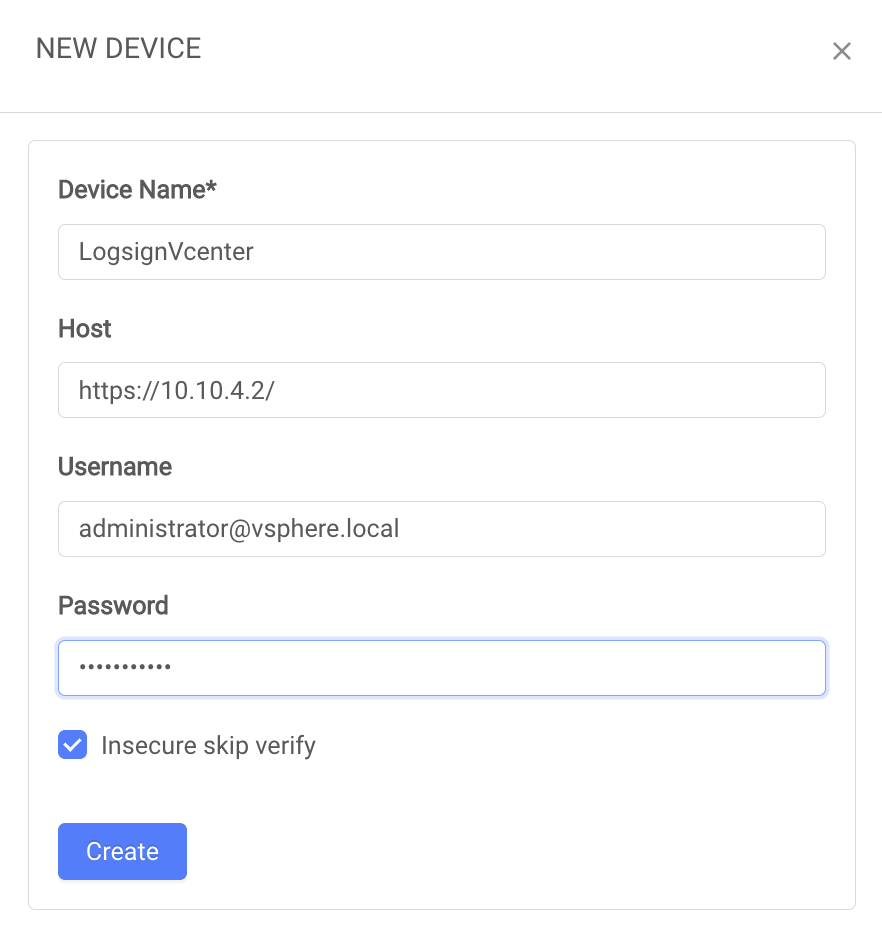

4. Define the settings as follows:

• Device Name: Define the Device Name.
• Host: The IP address of the Vcenter device/product to be integrated with Logsign.
• Username: Specify the user you have defined in Vcenter.
• Password: Specify the password you have defined in Vcenter.

5. Click Create to save the changes.

Methods

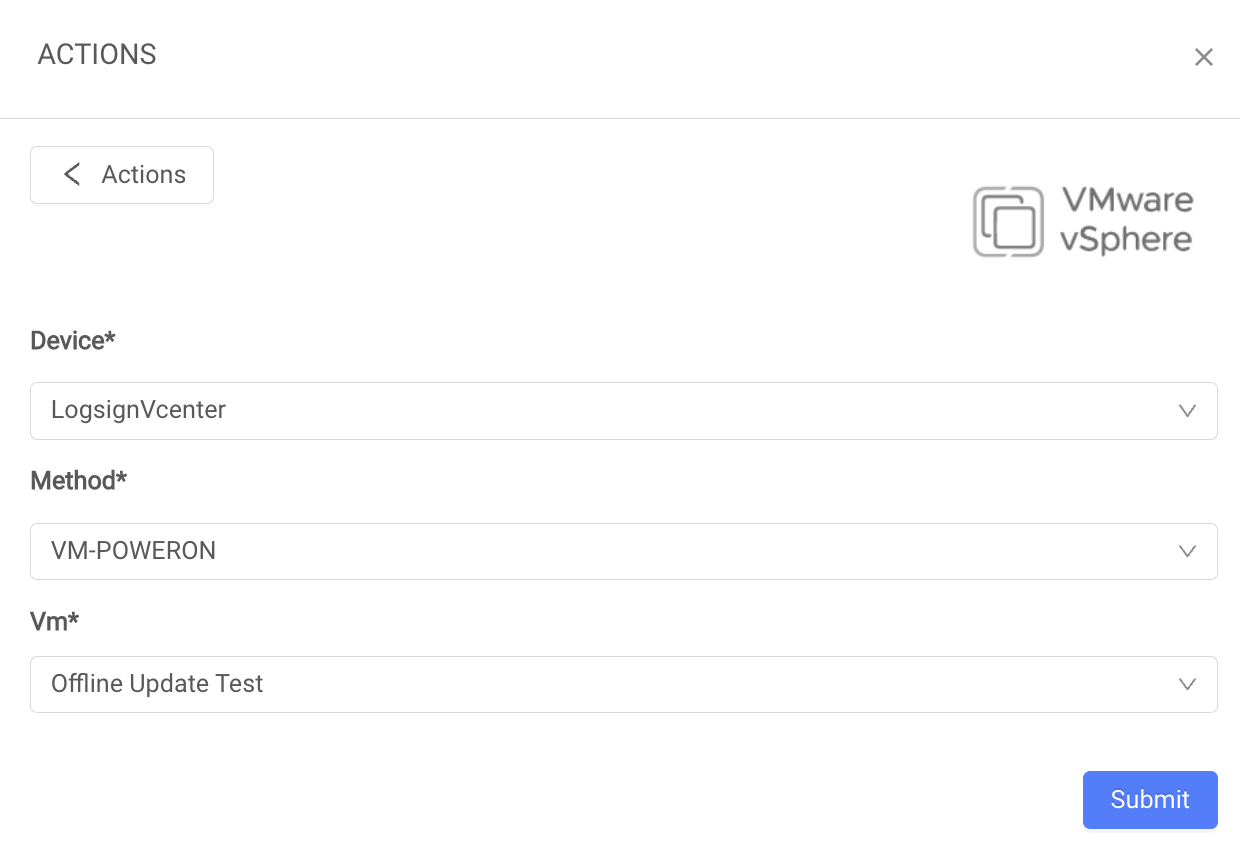

VM-POWERON

• Device: Select the configuration you have configured.
• Vm: Define the virtual machine you want to power on.

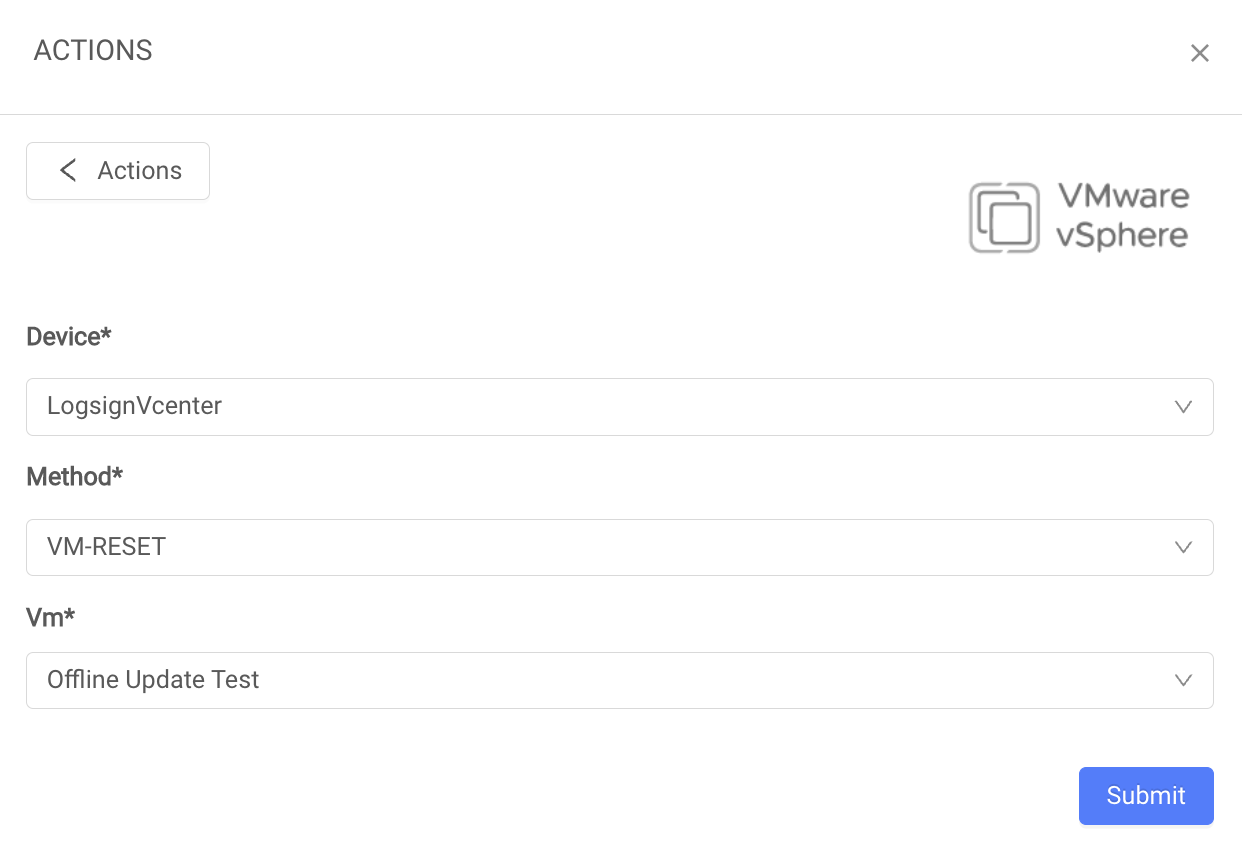

VM-RESET

• Device: Select the configuration you have configured.
• Vm: Define the virtual machine you want to reset.

VM-POWEROFF

• Device: Select the configuration you have configured.
• Vm: Define the virtual machine you want to power off.
